LOFT中國感謝來自 思聯建築設計 的住宅項目案例分享：
著名設計師林偉而先生（William Lim）邀請兒子林振國（Kevin Lim）和林振華（Vincent Lim），攜手為其兄弟在馬來西亞量身打造了一座集生活、休息、娛樂功能於一體的三層住宅，住宅中央的樓梯和中庭將功能不同的三層空間連接起來，整個設計令人驚歎不已。
William Lim, father of Kevin Lim of OPENUU, and Vincent Lim of Lim and Lu, invites his sons to design a house together in Kuala Lumpur for his brother. The result is a stunning 3 levels house with a central stairwell and atrium that connects 3 distinct functions on 3 levels: Live, Rest and Play.
該住宅位於吉隆坡城郊，占地800平方米，建築麵積達500平方米。設計理念以追求舒適和私密性為主。要營造舒適的居住環境，亟需解決當地強烈日照帶來的高溫問題。東南亞殖民時期的院落式住宅通常設有內部庭院，有助於熱空氣向房頂流動，達到散熱的效果。設計師們由此受到啟發，構築了一個中庭，形成了以內部空間為焦點的設計，確保了這座郊區住宅的私密性。
Set in suburban Kuala Lumpur on a 800m² corner plot, the design of the 500m² house started with 2 goals: Comfort and Privacy. To create comfort, it is important to combat the intense solar heat. Inspired by the vernacular Southeast Asian colonial courtyard house, which always contain an internal courtyard to allow hot air to rise to the top, the resulting atrium design makes an internally focused design that gives great privacy to this sub-urban context.

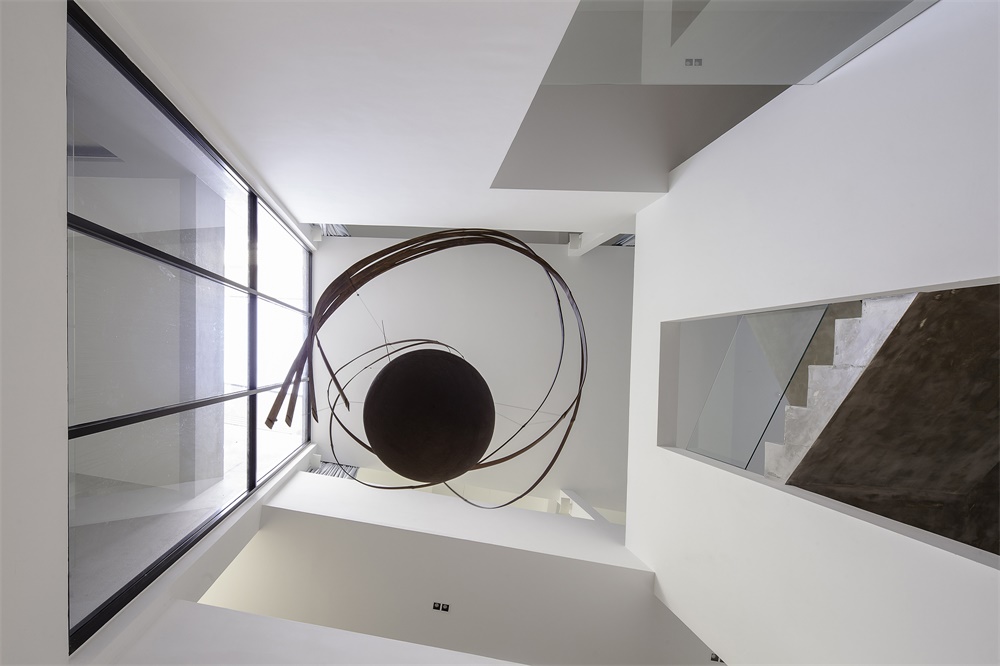

中庭底部是餐廳區域，在每一層都設計了寬敞的開口，從視覺上將所有空間連為一體。玻璃與混凝土的結合呈現出具有雕塑感的樓梯，樓梯構成中庭的一麵邊界，不僅增強了空間通透感和流動感，還能在人們上下樓梯時營造一種若隱若現的視覺體驗。為了更好地防止房屋過度受熱，住宅西立麵和西北角由一層垂直的鋁片覆蓋，如此一來，既能夠抵擋陽光強烈照射，又保證了露台的私密性。除此以外，懸垂的絕緣金屬屋頂又進一步起到了遮陽效果。
The atrium is occupied by the dining space at the bottom, and has large openings on all 3 levels to visually connect all the spaces. A sculptural stair of glass and concrete forms one edge of the atrium, adding transparency and fluidity to the space, while making the rising and descending steps a visual intrigue. To further shield the house from heat, the west façade and north-west corner are covered by a layer of vertical aluminum fins which also give privacy to the terraces. An overhanging insulated metal roof provides further shading to the house.
這個三層建築分別滿足三種不同的需求：生活功能、休息功能、娛樂功能。住宅底層設有起居室、餐廳以及用黃銅、大理石打造的特色酒吧；第二層配有4間臥室、1間家庭活動室以及1間書房；第三層是U型開放空間，一側配有健身房，另一側是遊戲室。中庭北麵是全高玻璃幕牆，將柔和的陽光引入整座住宅。
The 3 levels serve 3 distinct functional needs of Live, Rest and Play. On the ground level is the living and dining spaces with a feature bar of brass and marble. The second level contains 4 bedrooms, a family den and a study. The third level is a U shaped open space with the gym on one side and games on the other. A full height glass wall on the north side of the atrium brings in soft daylight to the entire house.
此住宅的設計美學以功能為驅動，由白牆、外露水泥、木紋地磚組成的簡約室內裝飾便於維護和保養，且所有材料均來源於當地。中庭設計輔之以吊扇加速空氣流通，窗簾和百葉窗進一步遮擋陽光照射。這些被動式節能設計讓這座亞洲當代住宅極具可持續性，成為遠離塵囂的理想安靜居所。
The esthetics is function driven. A simple interior finishes palette of white washed walls, exposed cement, and wood grained floor tiles makes for easy maintenance. All material used are drawn from local sources. Besides the central atrium, ceiling fans are used to aid air circulation further. Curtains and blinds further help to cut off solar heat penetration into the house. These passive energy design solutions are applied to this sustainable house, contributing to a quite sanctuary from the contemporary Asian lifestyle.
∇ 地麵層平麵圖 ground floor plan
∇ 一層平麵圖 1F plan
∇ 二層平麵圖 2F plan
∇ 軸測圖 isometric drawings
完整項目信息
項目名稱：3×3 House
完工時間：2018年5月
項目地址：馬來西亞吉隆坡
項目麵積：500 m²
設計團隊：思聯建築設計、又又設計、林子設計
思聯建築設計官網：https://CL3.com/
攝影：林振華、王思仰
Project Name: 3×3 House
Completion: May 2018
Address: Kuala Lumpur, Malaysia
Area: 500 m²
Design Team: CL3 Architects Limited (https://CL3.com/), OPENUU Limited, Lim + Lu Design Limited
Photography: Vincent Lim, Nirut Benjabanpot
