LOFT中國感謝來自 COLORFULL 昱景設計 的建築改造項目案例分享：
項目位於上海市靜安區南京西路中段，建築麵積1500平方米，應業主要求對其進行外立麵改造與室內設計。
The project is located in the middle section of West Nanjing Road, Jing’an District, Shanghai, with a construction area of 1,500 square meters. We renewed the facade and interior at the request of the owner.

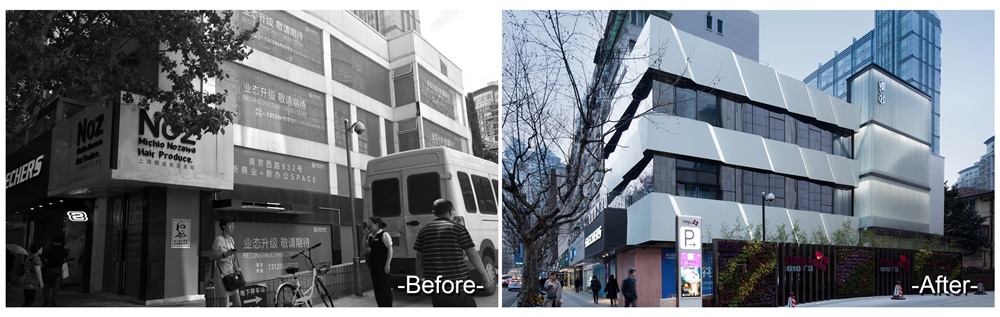

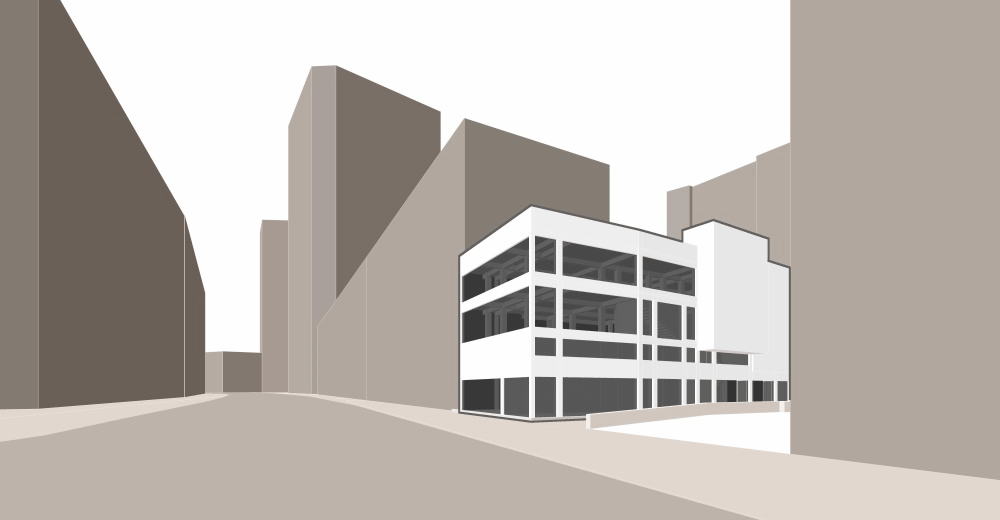

由於建造時間較早，該建築平麵輪廓線較其他沿街新建築更為凸出；兩側環境乏善可陳，主入口隱藏在場地深處難以聚集人流。
Built quite long ago, the building is more building’s plane outline is more prominent than other new buildings along the street; the environment on both sides is not highlighted, and the main entrance is hidden in the depths of the site and therefore couldn’t attract people into the venue.

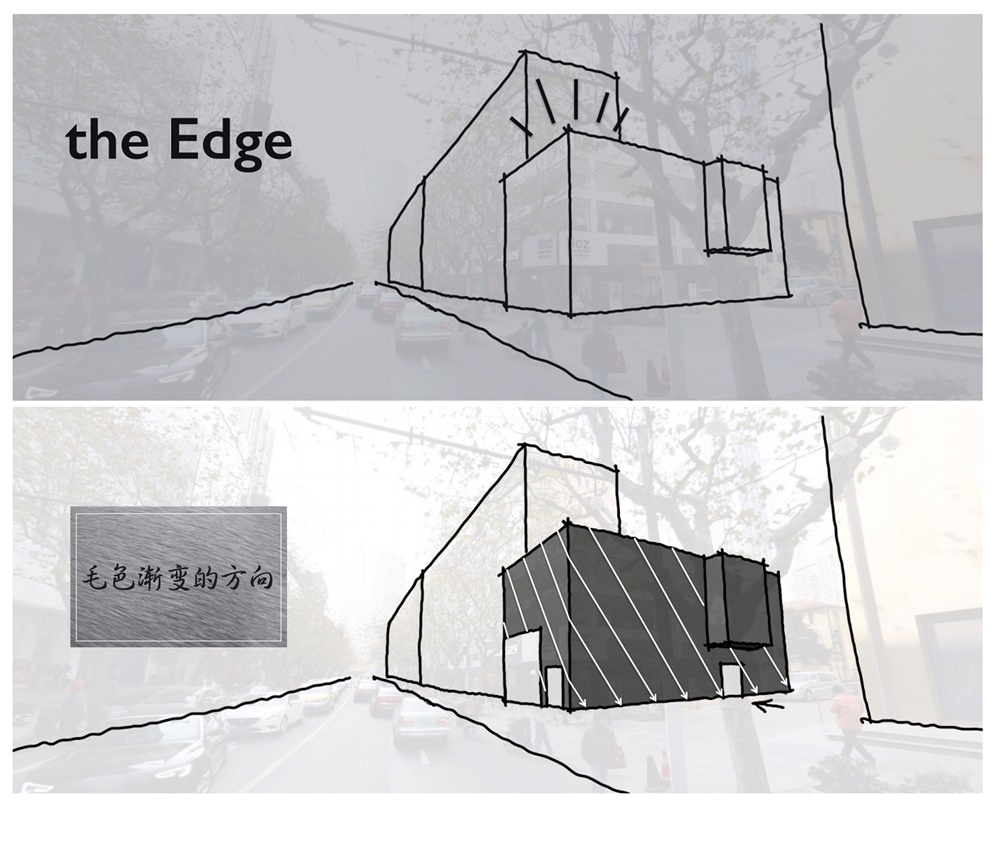

綜合考察現場條件，最終擬定的設計概念為“The Edge”。意在把握凸出的有利位置，將一個尺度恰當而清晰的體塊置入場地，使立麵與街道景觀產生新的聯係，同時仍能保持商業建築醒目的特質。
After comprehensive investigation of the site condition, we finally set the concept as “the edge”, which means to make full use of the favorable position of the bulge, and put a properly-sized and clear body into the site, so that the facade and the street landscape are reconnected, while still maintaining the striking feature of commercial buildings.

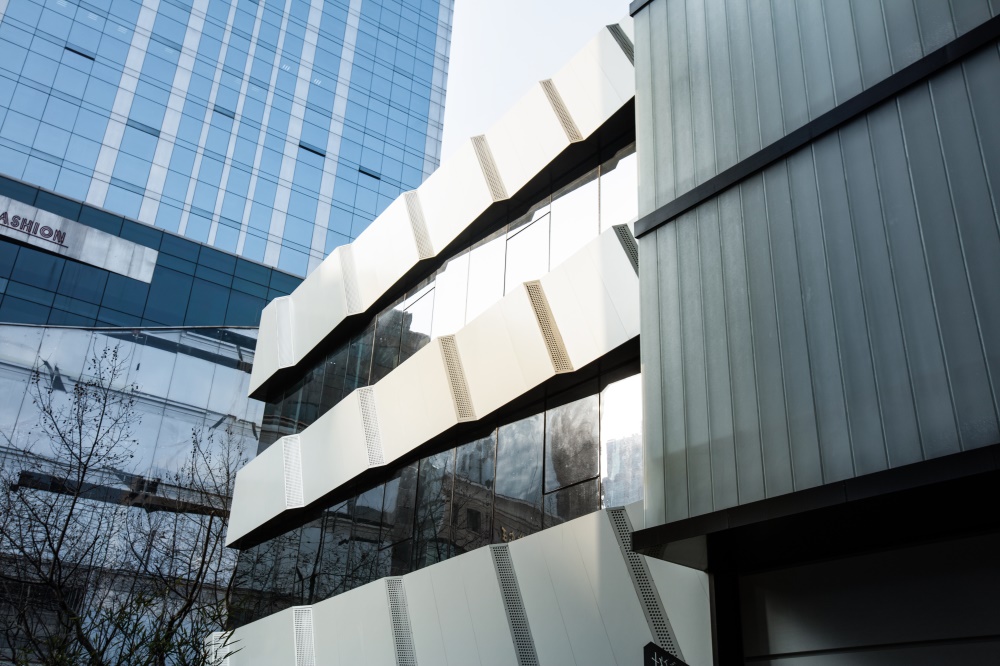

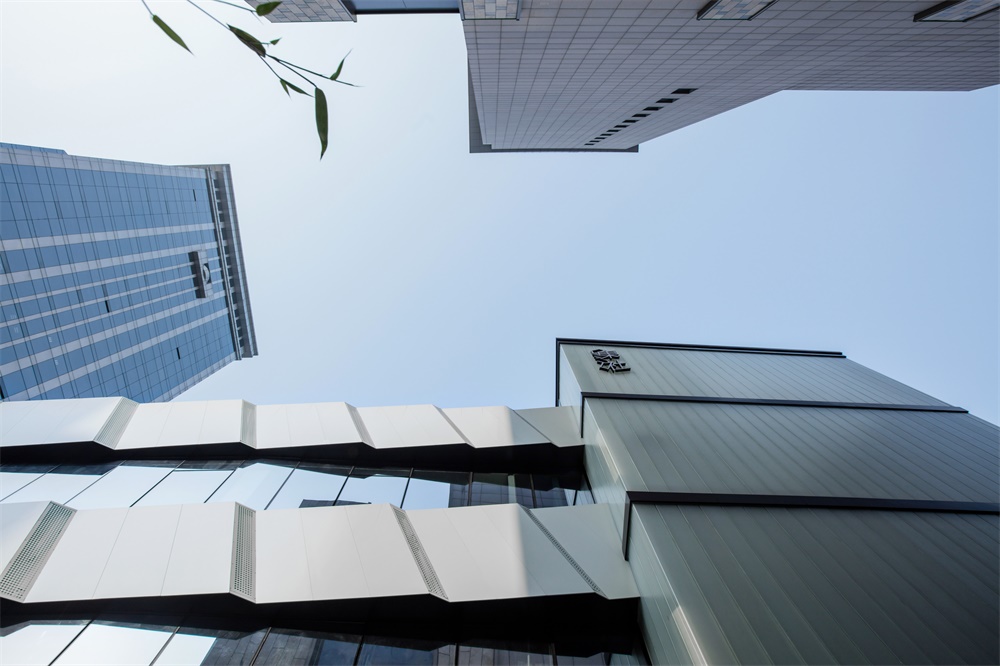

設計以由外及內的關係推演為切入點，強調塑造轉角建築的體量感。鋼板與U型玻璃一實一虛，前後呼應，承擔了限定體量與模糊邊界兩種功能——在人行視角，前端起伏的介質呈現明確的體積感，後部半透明的輕盈帶來邊界的不確定性。
The design is based on the relationship between the outside and the inside as a breakthrough point, emphasizing the sense of volume of the corner building. The solid steel plate and the transparent U-shaped glass echo back and forth, performing functions of limiting the volume and blurring the boundary —— from the perspective of the pedestrian, the front undulating medium presents a clear sense of volume, whereas the rear translucent medium brings the uncertainty of the boundary.

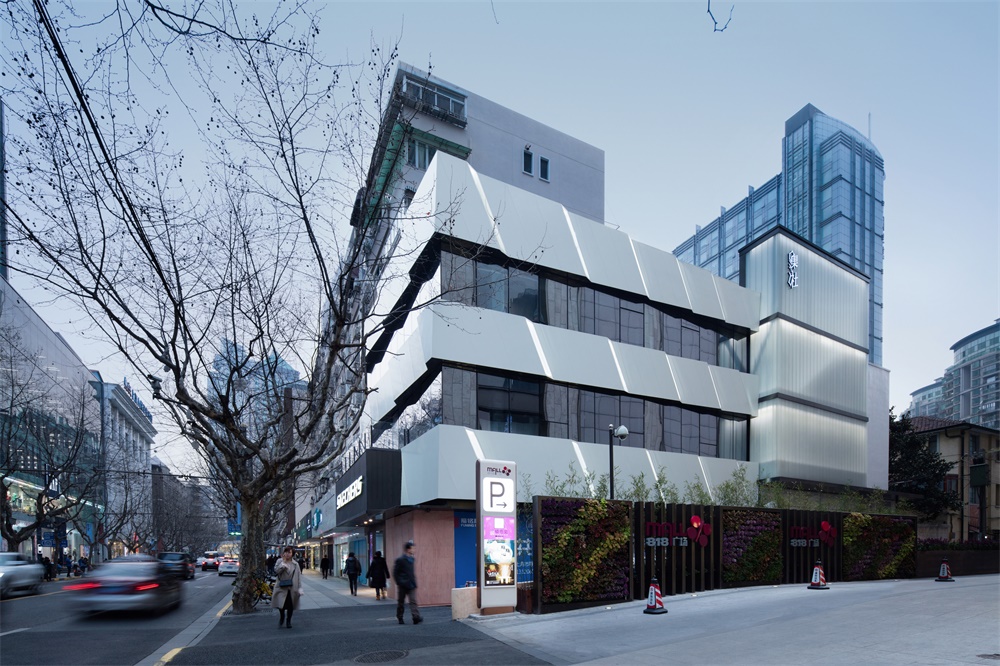

∇ 透過行道樹的映襯與遮蔽，起伏流動的轉角以建築語言重構。Through the reflection and obscuration of the street trees, the undulating “edge” is reconstructed by brand new architectural language.
梧桐的季節變化被鍍膜玻璃以倒影形式引入，消解了立麵的縱向連續感，鋼板造型的流動特征得以強調，藏在深處的入口由此具備向心力。設計概念正以此方式，激發場地活力。
The seasonal changes of the paulownia tree are introduced in the form of reflection by the coated glass, which eliminates the longitudinal continuity of the facade. The flowing feature of the steel plate shape is emphasized, and the entrance hidden in the depth has thus become distinct. The design concept is to stimulate the vibrancy of the venue in this way.

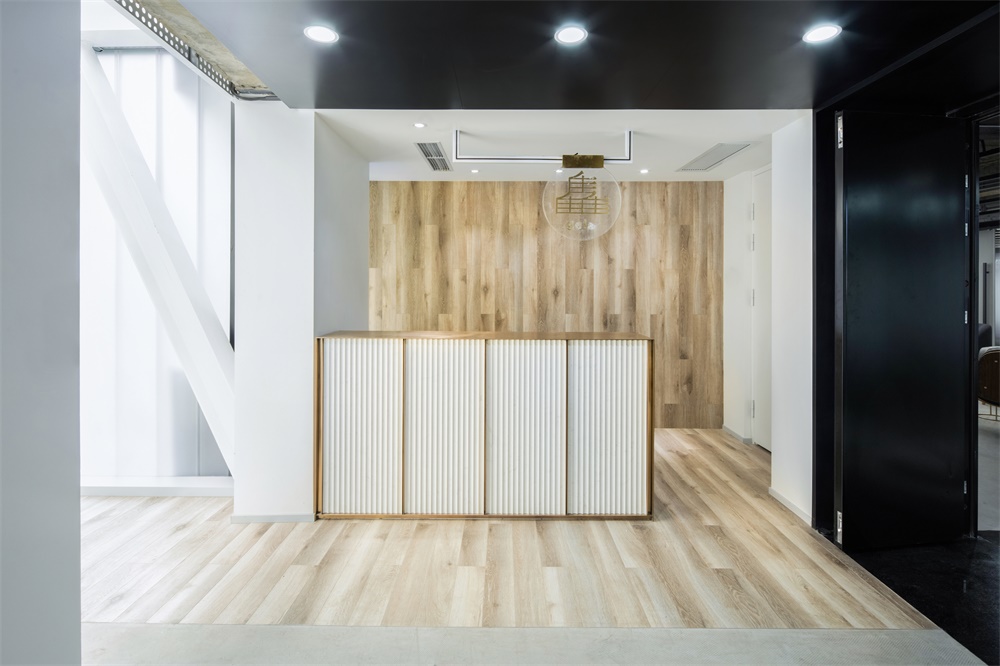

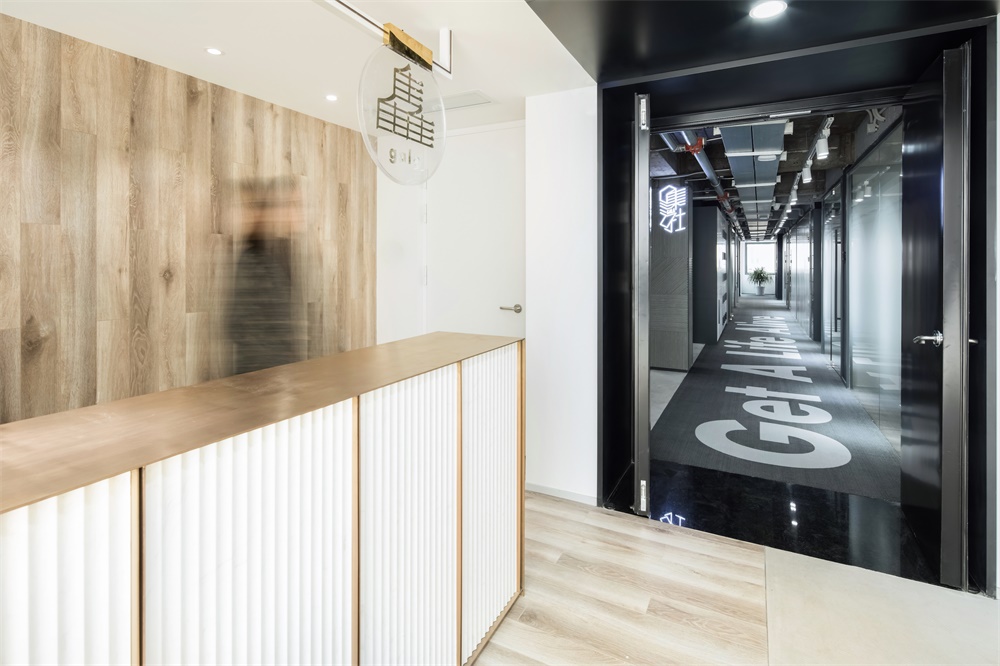

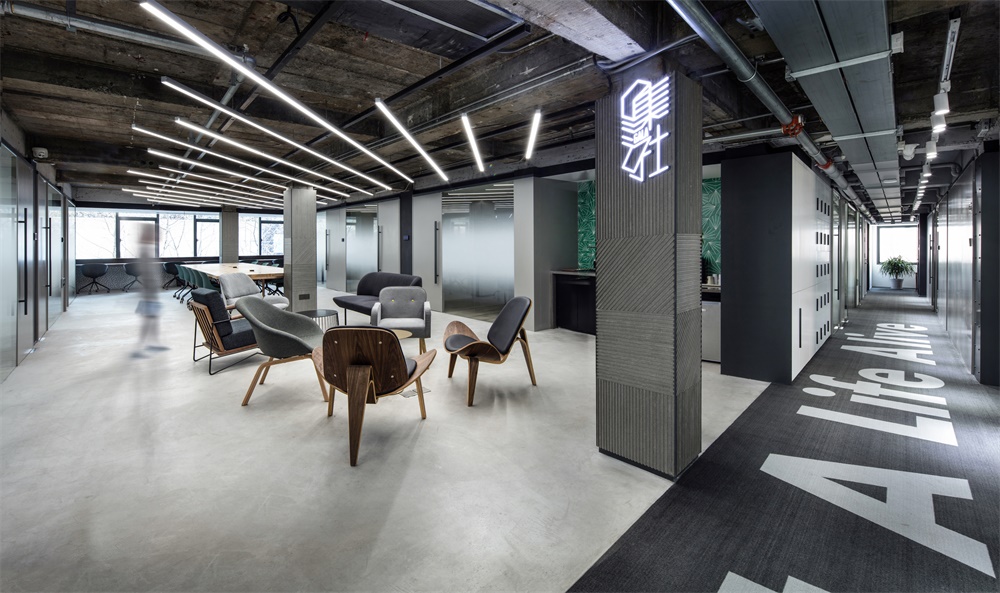

室內層高極低，因此公共部分選擇裸頂以充分利用現有高度，配合金屬、玻璃、淺色自流平地麵，使硬裝部分呈現冷硬利落的效果，而植物與家具的置入又給使用者提供新一層次的體驗。
The indoor story height is extremely low, so we chooses the bare top for the public area to make full use of the existing height, and the metal, glass and light-colored self-leveling floor make the hard decoration neat and tidy, while the plants and furniture are provide the users with a different experience.

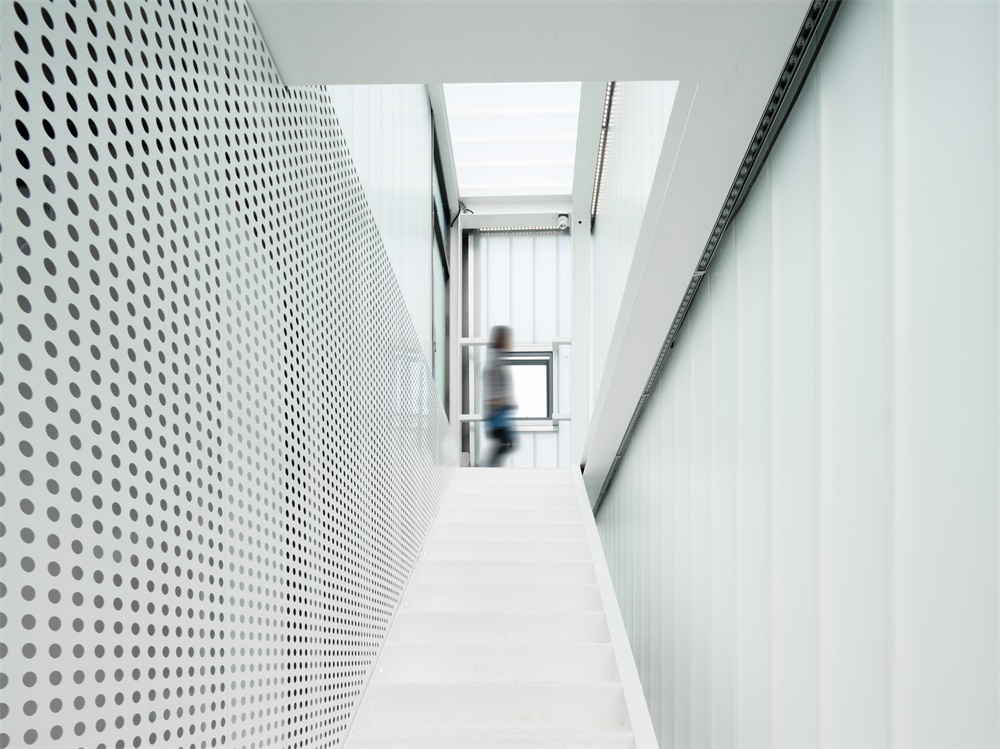

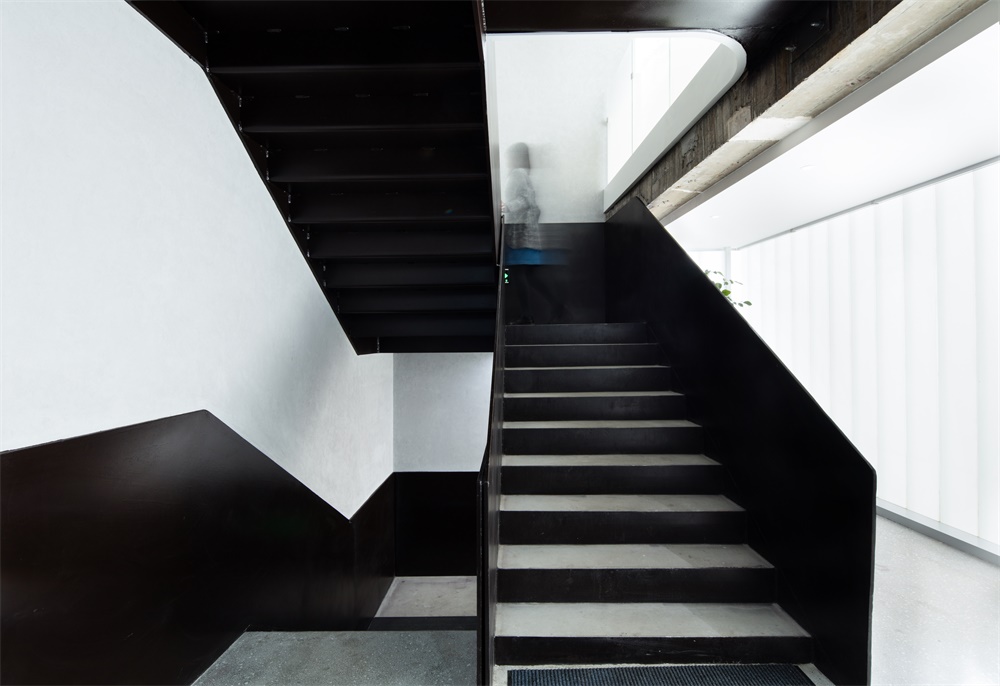

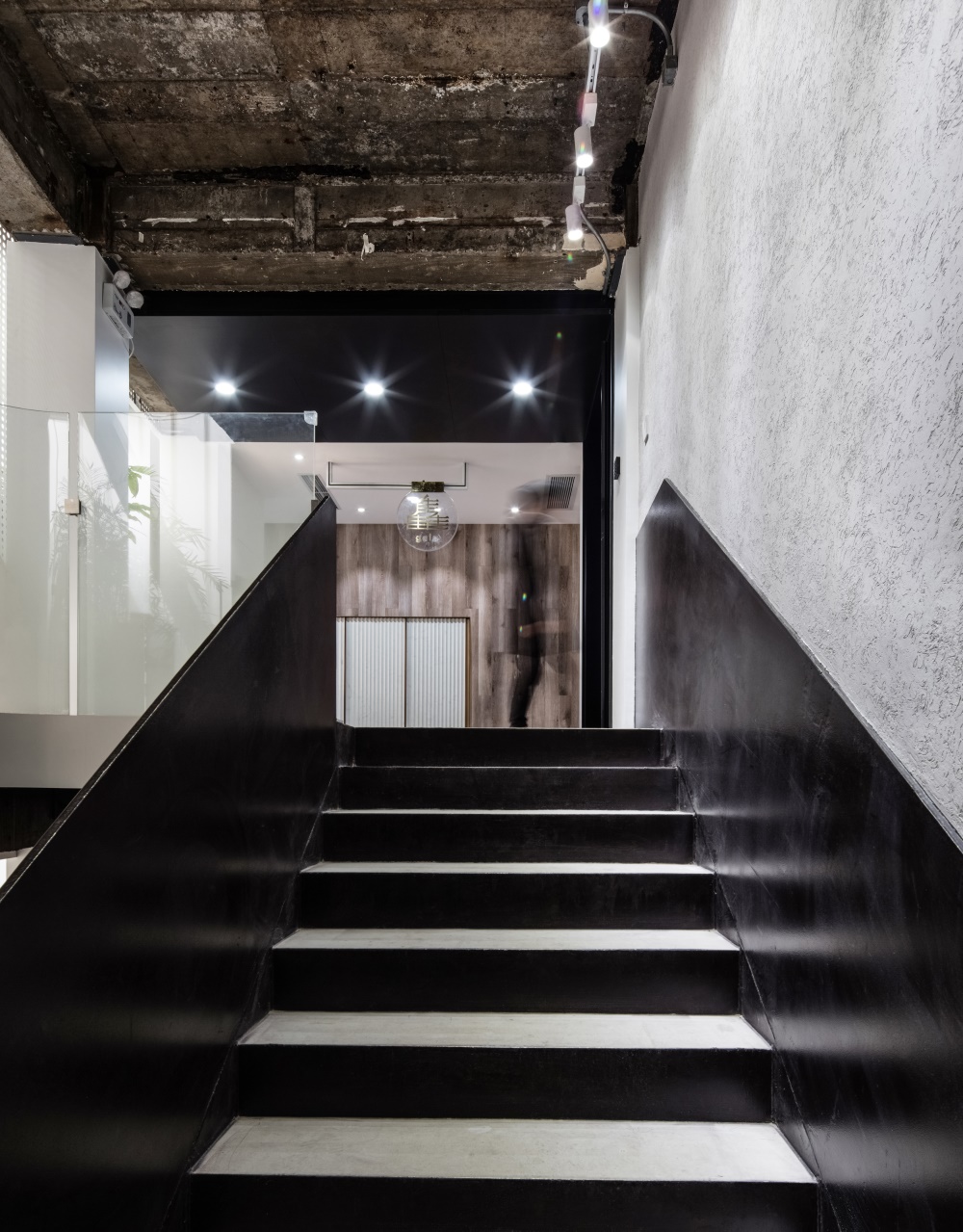

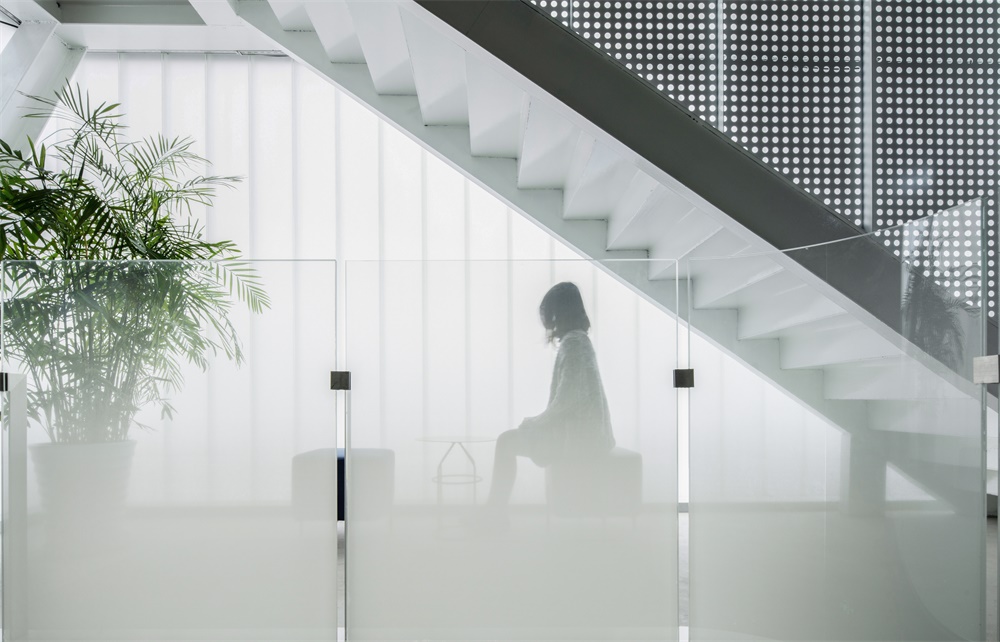

∇ 二層通向三層 The second floor leads to the third floor

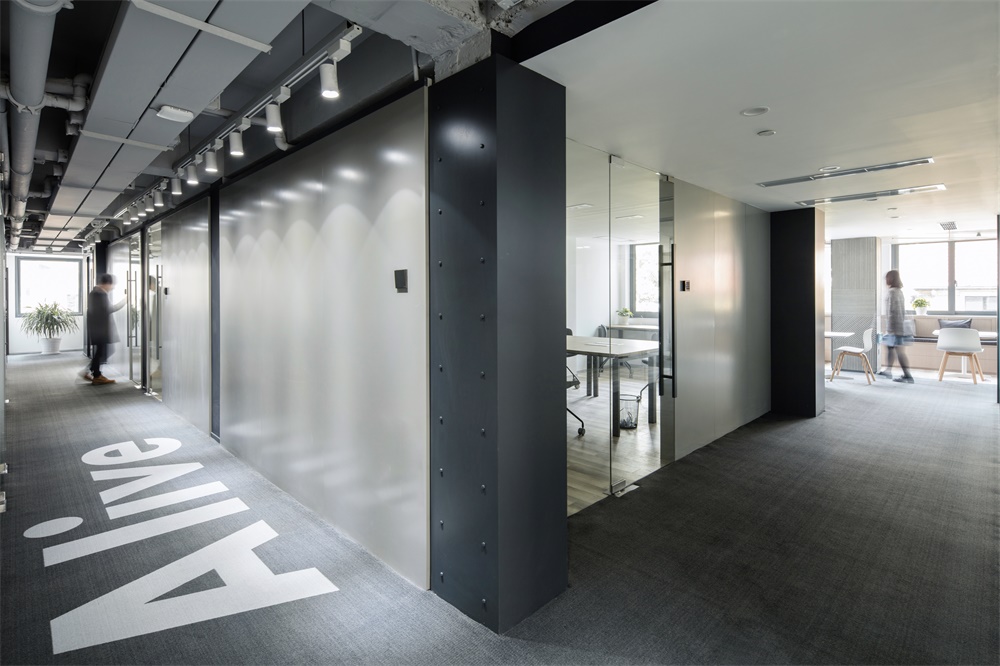

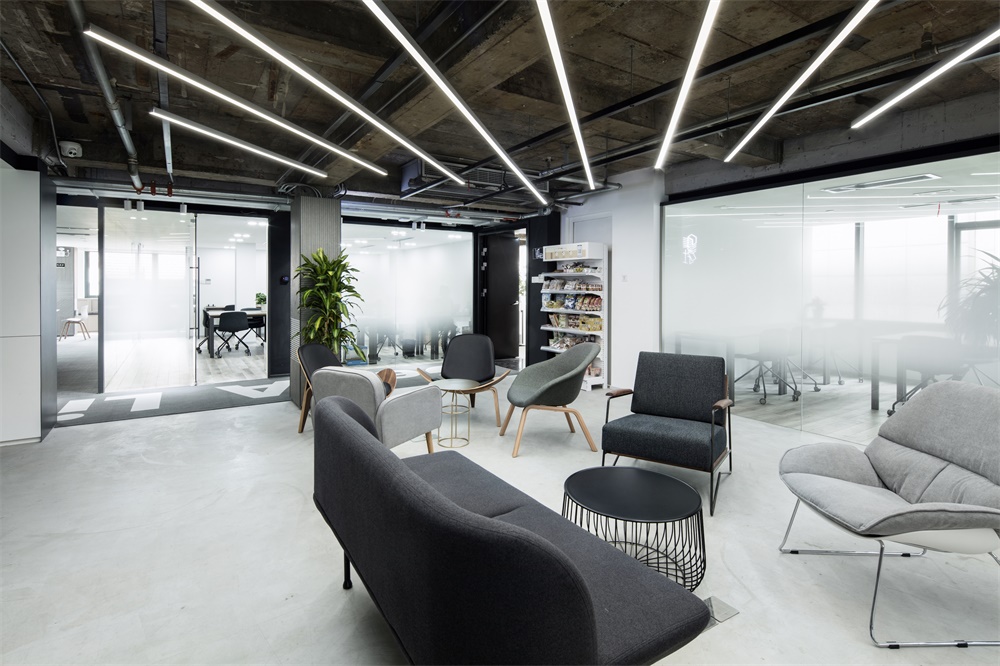

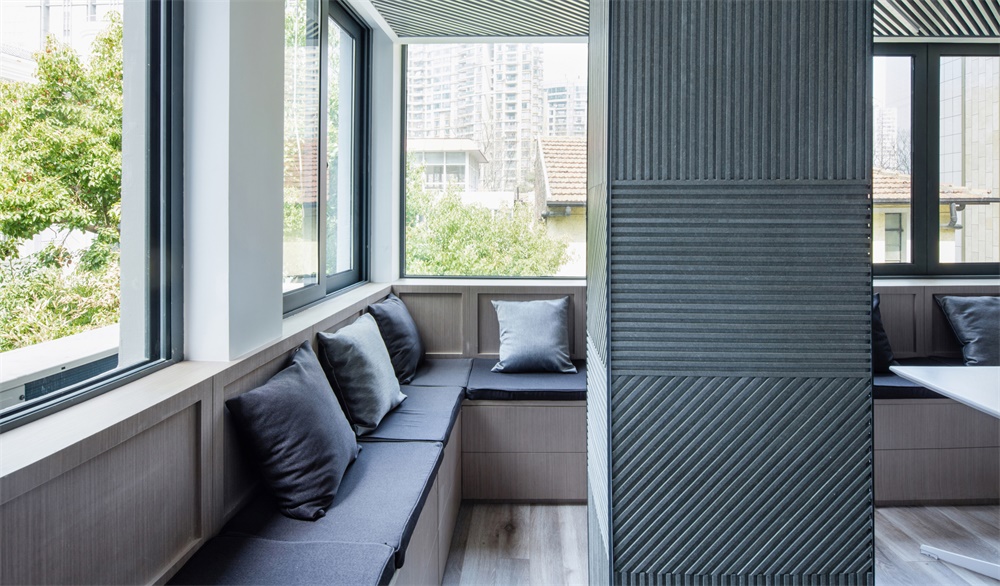

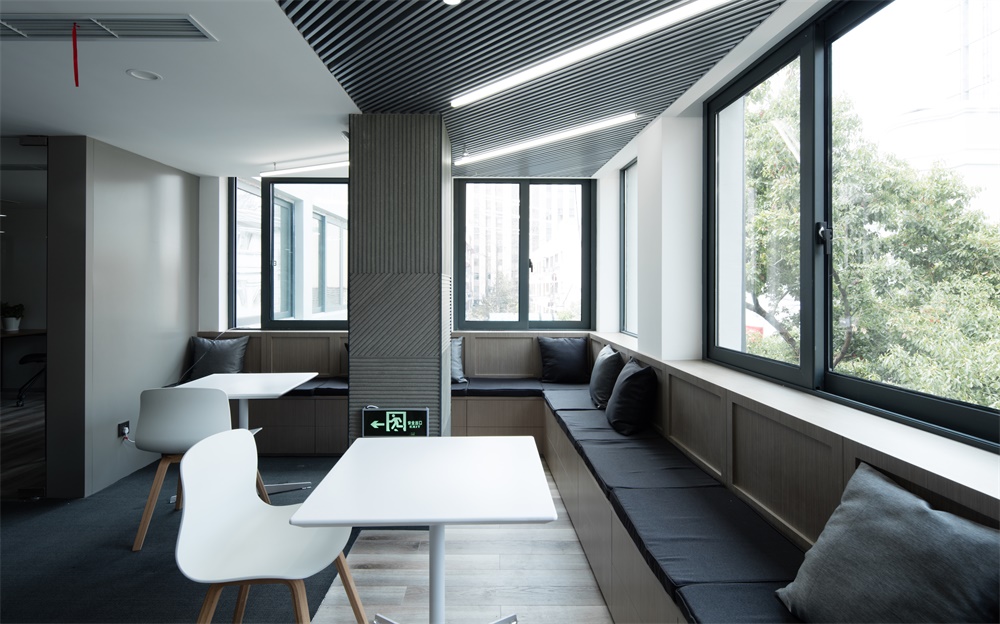

三層作為聯合辦公，具有多種複合功能屬性，人們經半開放的獨立辦公區走出，在流動的公共空間，開始一段談話，或者駐足觀看被引入室內的風景。
As a co-working space, the third floor has composite functions. People step out from a semi-open separate office room to the public area whether to start a conversation, or to enjoy the scenery that is introduced into the room.

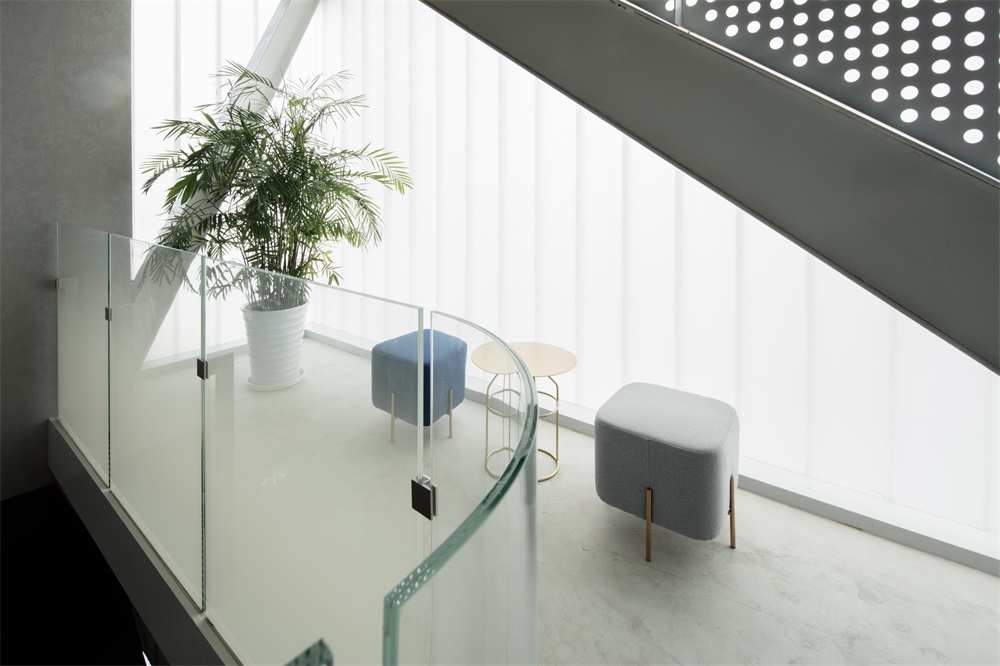

獨立房間的半透玻璃緩解了牆體圍合帶來的壓力，將室內活動映射到公共區域，這種通透感也正是創意聯合辦公的重要屬性。
The translucent glass of the separate office rooms alleviates the pressure caused by the enclosure, and presents the indoor activities to the public area. The sense of transparency is also one of the important attributes of creative co-working spaces.

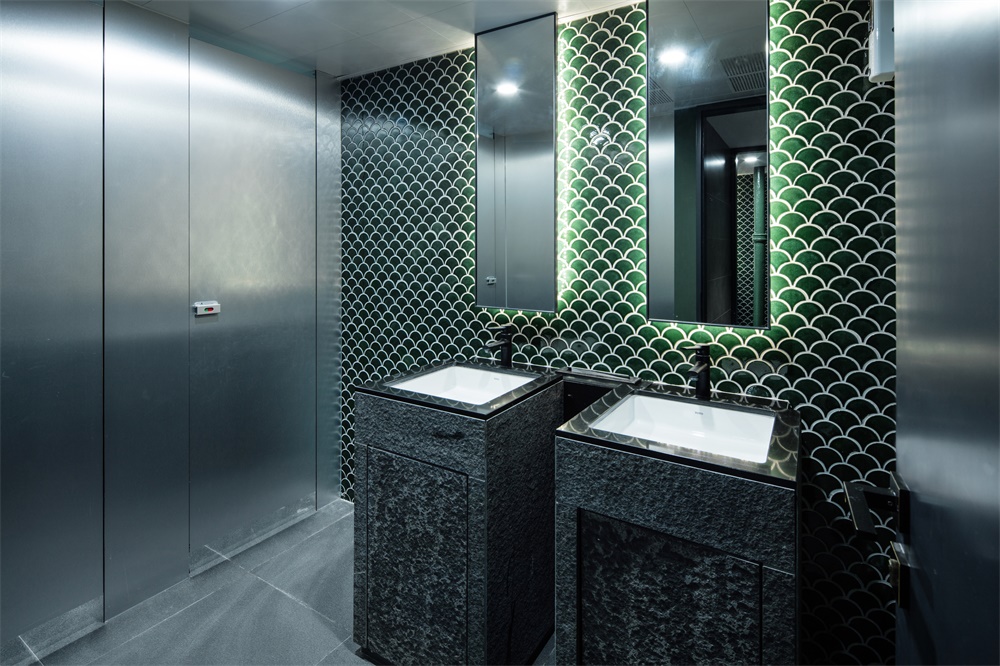

∇ 衛生間 Toilet

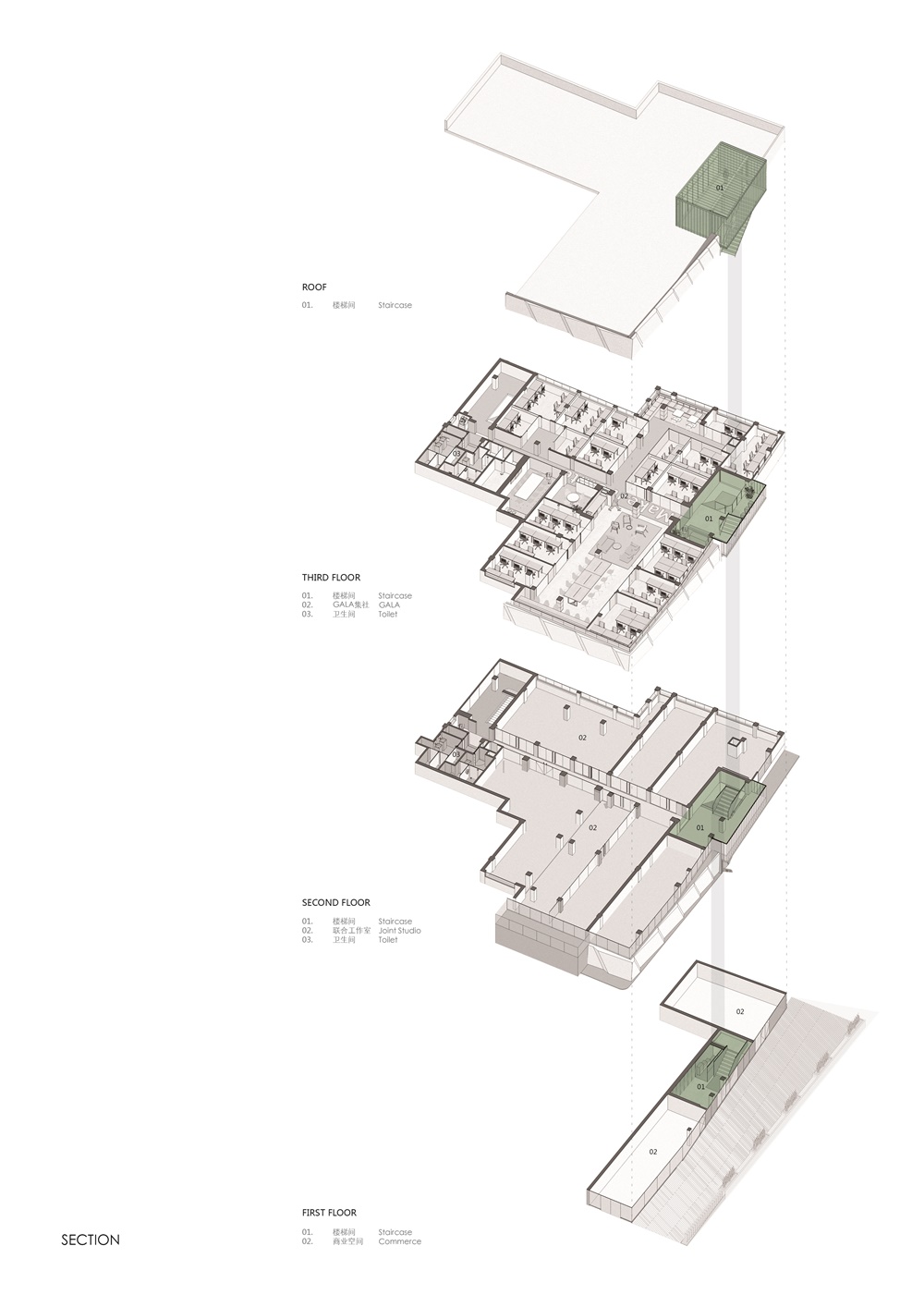

∇ 平麵關係圖 Plane diagram

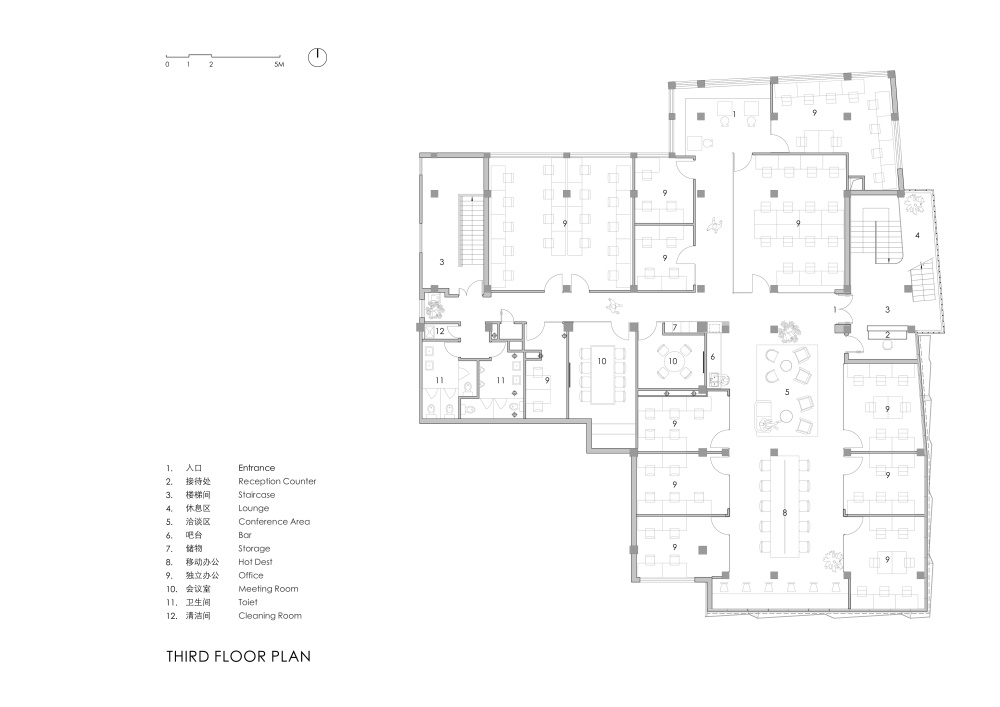

∇ 三層平麵圖 Third floor plan

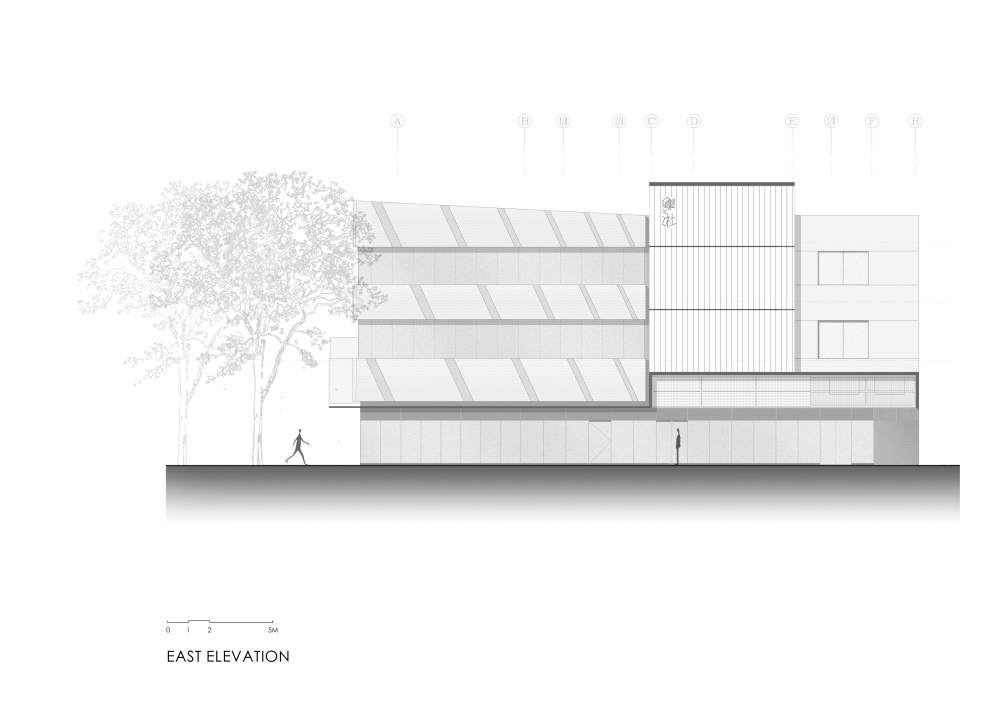

∇ 立麵圖 Elevation

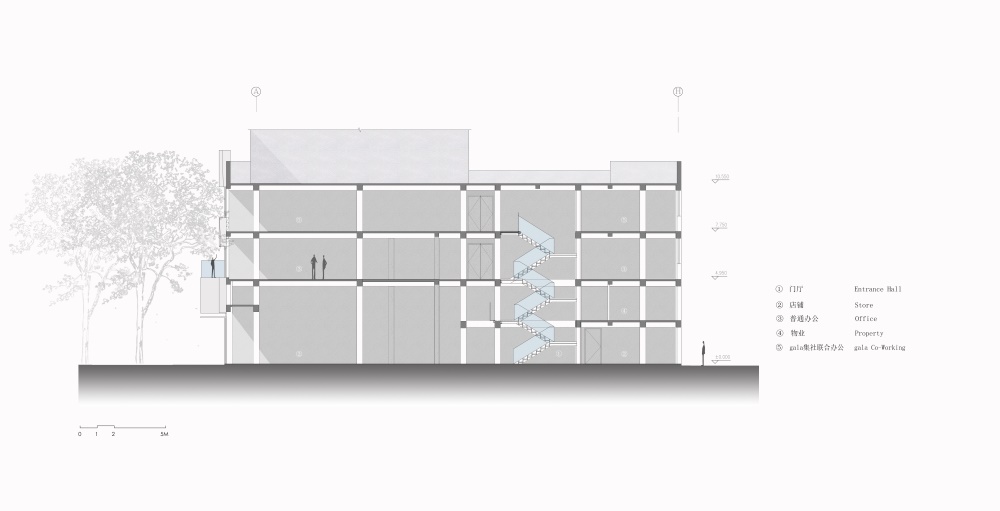

∇ 剖麵圖 Section
完整項目信息
項目名稱：gala集社
項目地址：上海市靜安區南京西路832號
設計方：COLORFULL 昱景設計
建築麵積：1,500㎡
公司網站：http://www.colorfull-design.com/
聯係郵箱：cf@colorfull-design.com
項目設計 & 完成年份：2018
主創及設計團隊：趙宗陽、小野良介、張顥、張亞雲
攝影版權：直譯建築攝影
客戶：上海福銘資產管理股份有限公司
品牌：地毯-鴻鼎；U型玻璃-阿普爾頓；鏽色不鏽鋼-涵旺
Project name：gala
Project location：No. 832 West Nanjing Road, Jing’an District, Shanghai
Design：COLORFULL YUJING DESIGN
Gross Built Area (square meters)：1,500㎡
Website：http://www.colorfull-design.com/
Contact e-mail：cf@colorfull-design.com
Design year & Completion Year：2018
Leader designer & Team：Sunny Zhao、Ryo Ono、Hao Zhang、Yun Zhang
Photo credits：ArchiTranslator
Clients：Shanghai Fuming Assets Management Co., Ltd.
Brands / Products used in the project：Homedee；ASG；Hanwang；
