全球設計風向感謝來自 序態設計研究室 的辦公空間項目案例分享:
四季的豐富,多彩的配飾,複合的展示形式,空間兼並移動辦公。圍繞當下人們的需求,配飾類型辦公空間已經需要的更加靈活多樣。
The office is both an exhibition hall in complex display forms for colorful accessories, and mobile office. The accessory office space requires more flexibility and variety based on people’s needs.
項目位於上海七寶萬科國際的9層寫字樓內,公司是服務歐洲最大的時尚品牌配飾展廳,同時兼並10人辦公空間。配飾分為春夏與秋冬兩種顏色趨勢,產品樣式。我們調研了產品本身尺寸/顏色/樣式繁雜,如果從針對單個係列入手,會陷入無限的泥潭當中。
The project is located in the 9-story office building of Shanghai Qibao Vanke International. The company serves the largest fashion brand in Europe and this office is both an exhibition hall of accessories and office space for 10 staff. Accessories are divided into two color trends and styles – spring/summer and autumn/winter. Having investigated the sophisticated size/color/style of the product itself, we realized the single series of product would not be a good place to start.
通過研究發現三宅一生的時裝秀場頗具特色,模特之間分為幾個隊列穿插進行流線的展示,很大的區別於傳統的T台一字形方式。
Through research, it is found that the fashion show of Issey Miyake is quite distinctive. The models are divided into several queues and interspersed for streamlined display, which is very different from the traditional runway in-line style.

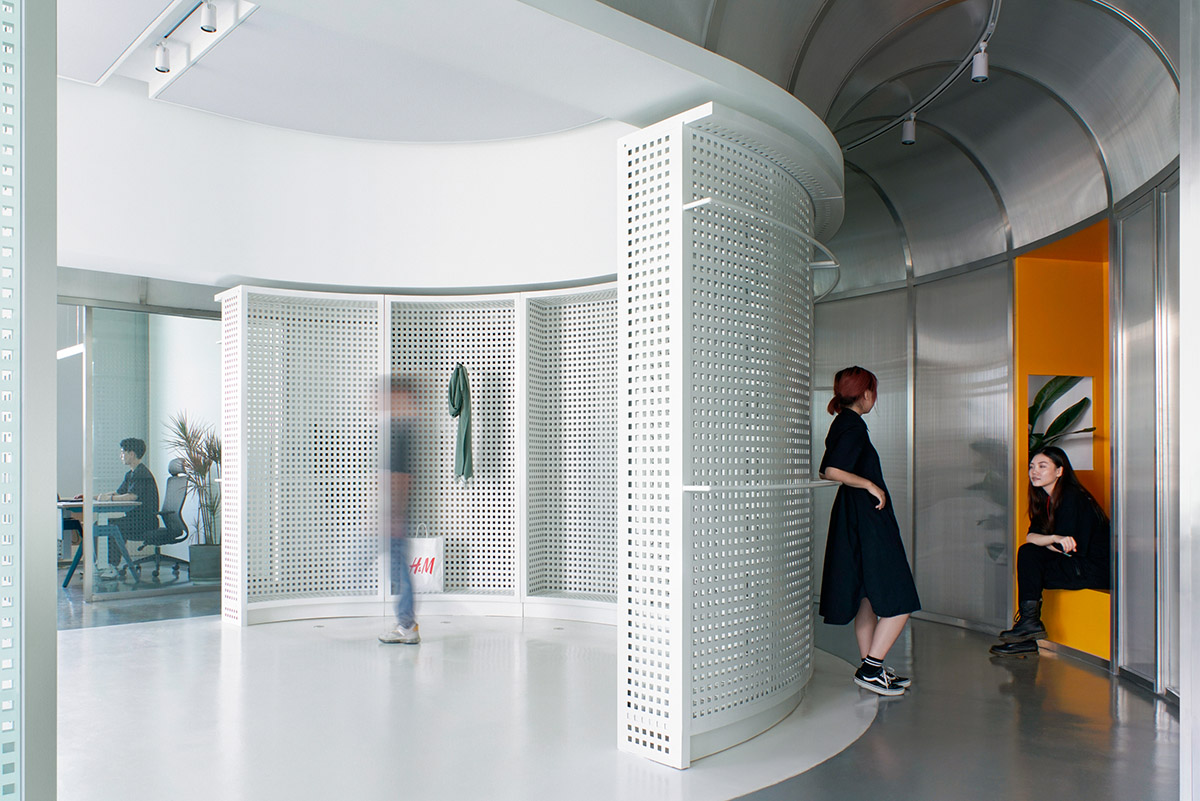

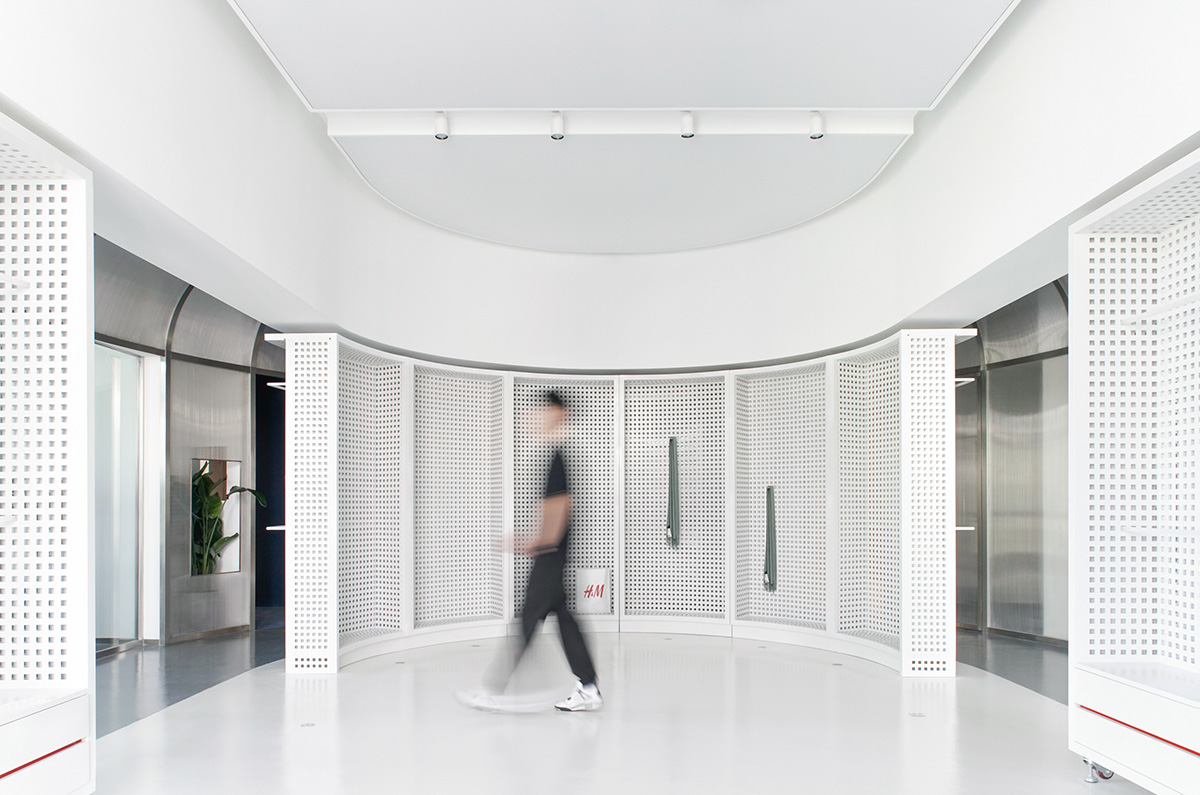

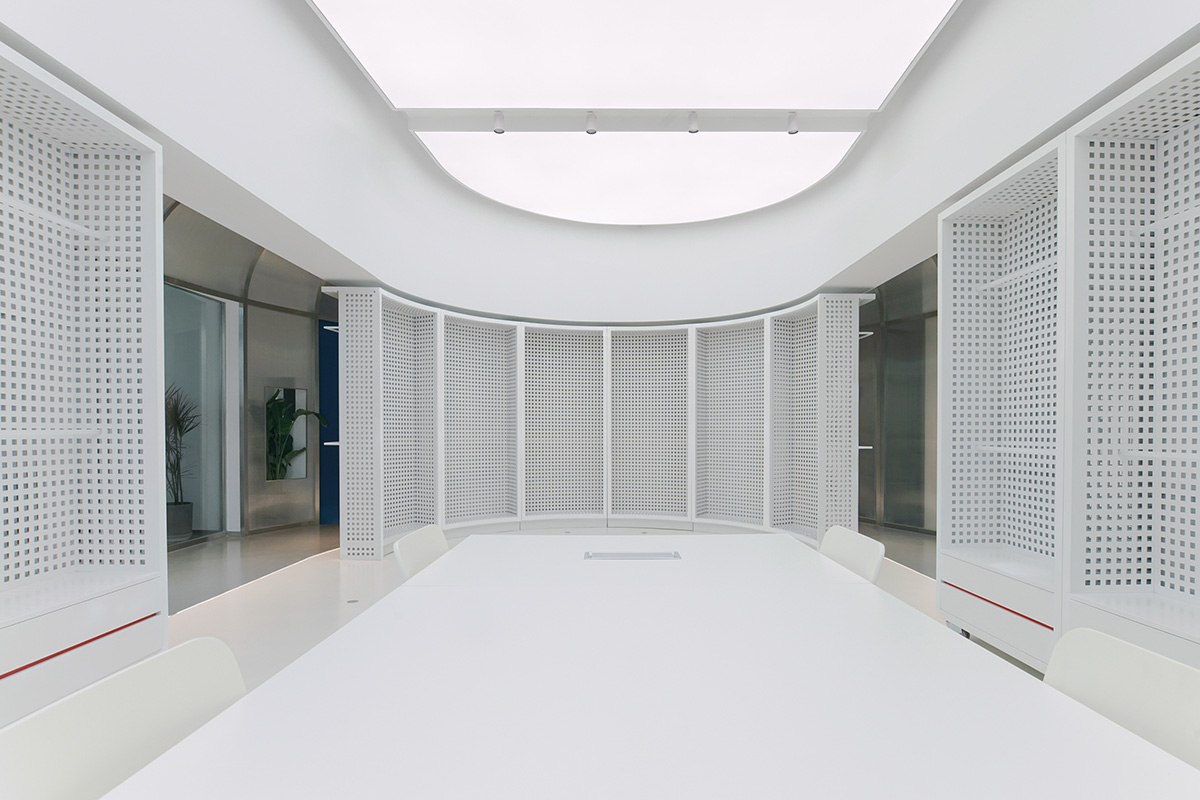

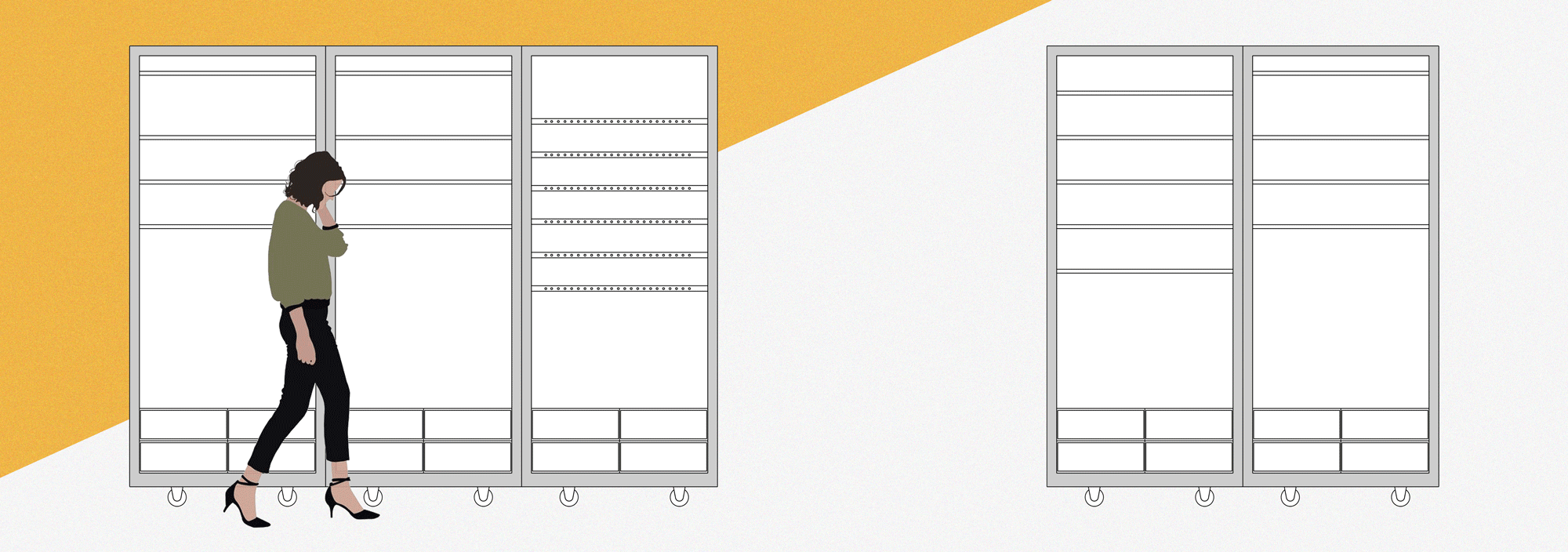

思考運用多樣T台走秀的概念,結合當下方正的場地類型,把直線T台進行U字變化,延長空間的展示路徑。曲線部分為固定展示區域,展櫃兩側可以作為春夏和秋冬的分布。其它直線部分作為可移動的展示櫃體,中間廣場區域滿足移動靈活布展。

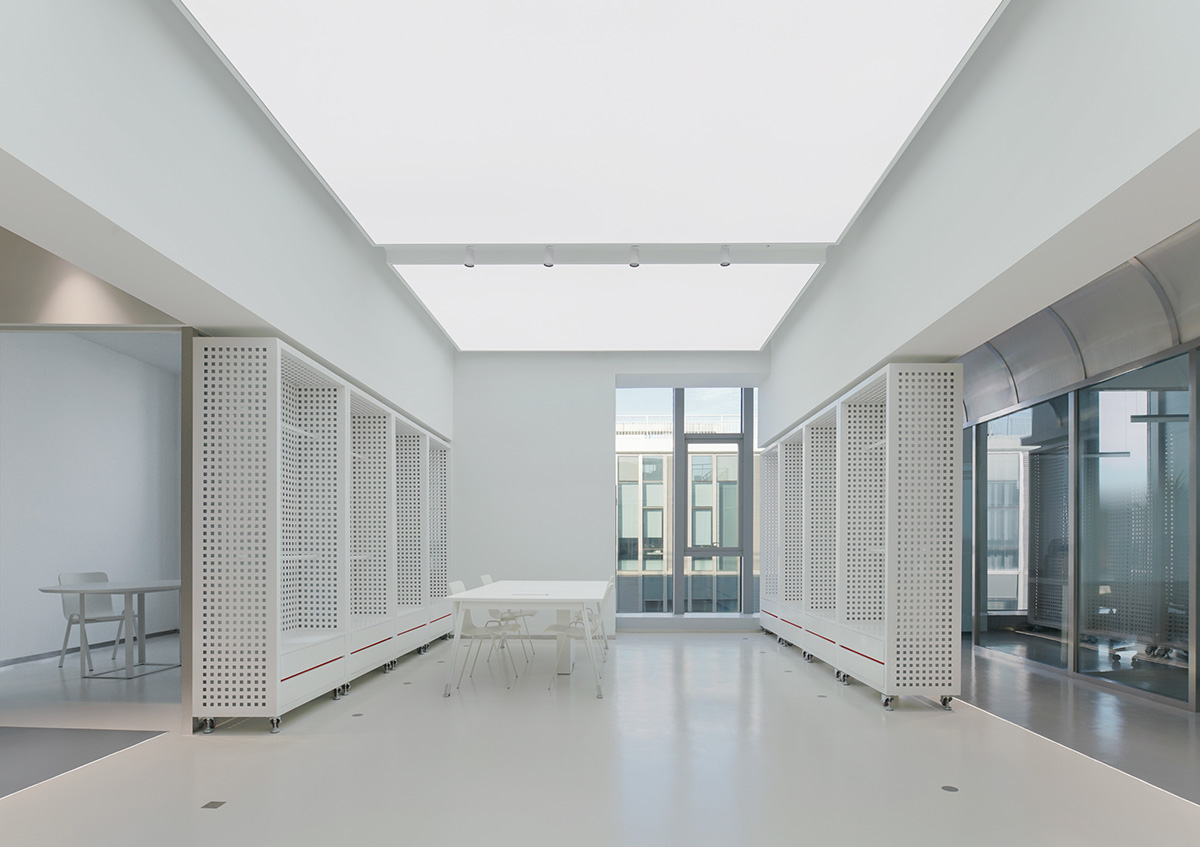

Combining the square venue with the concept of catwalks, we changed the linear catwalk into a U-shape to extend the display path of the space. The curved part is a fixed display area, and the two sides of the showcase can be used to demonstrate the two series of products. The other linear parts are used as movable display cabinets, and the middle square area meets the requirements of mobile and flexible exhibition.

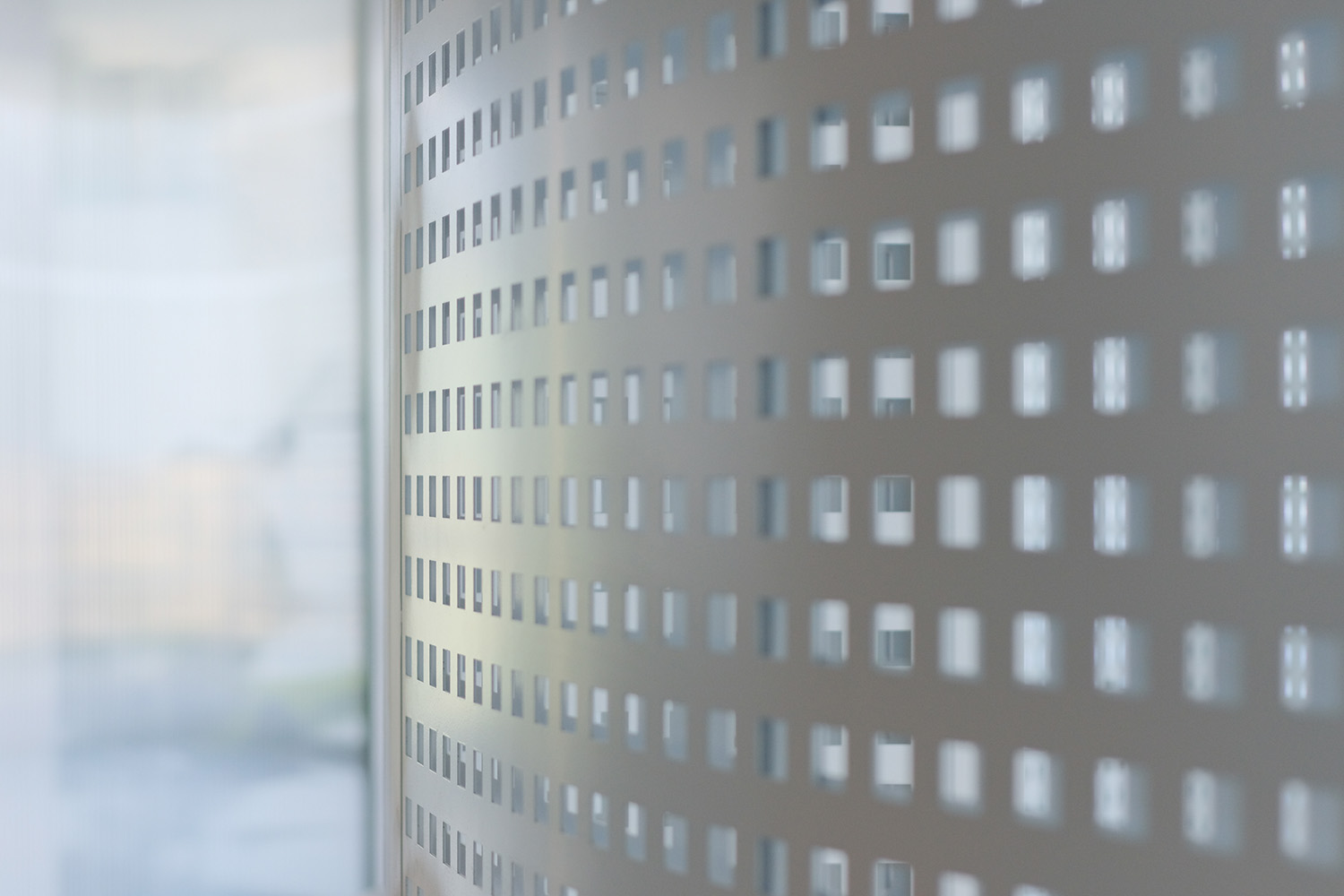

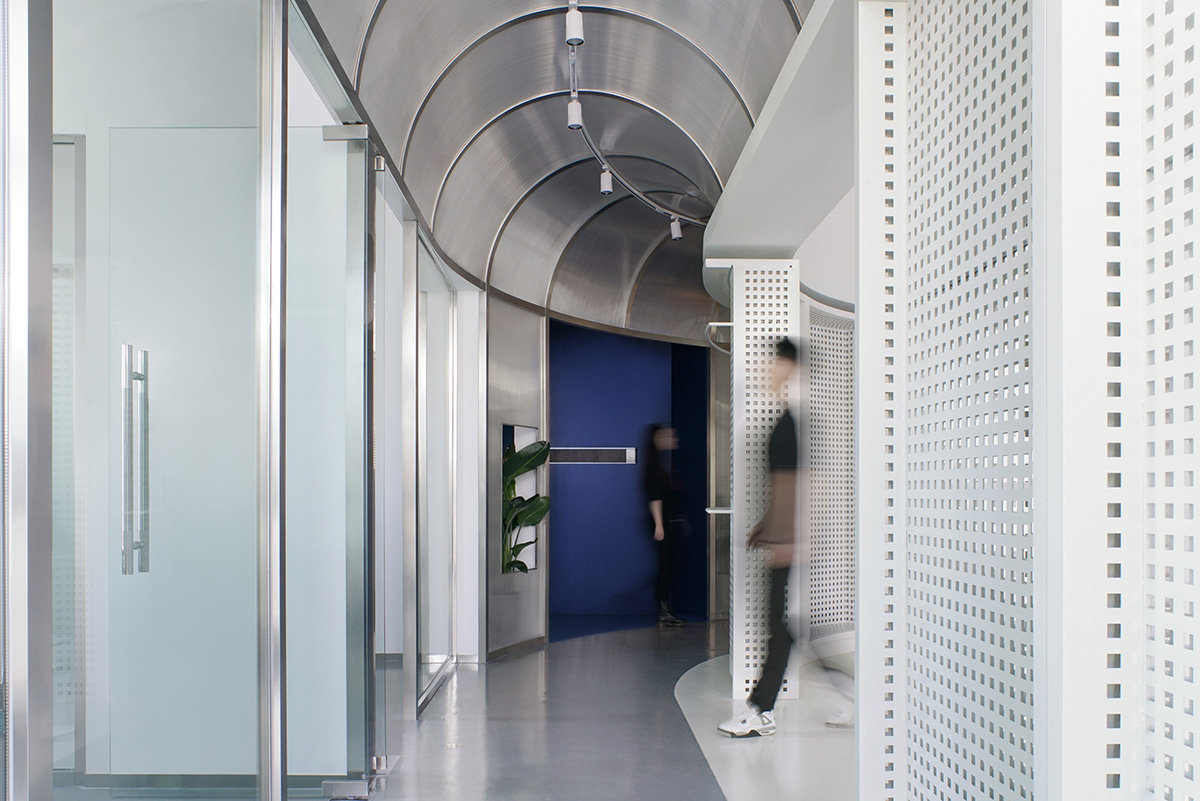

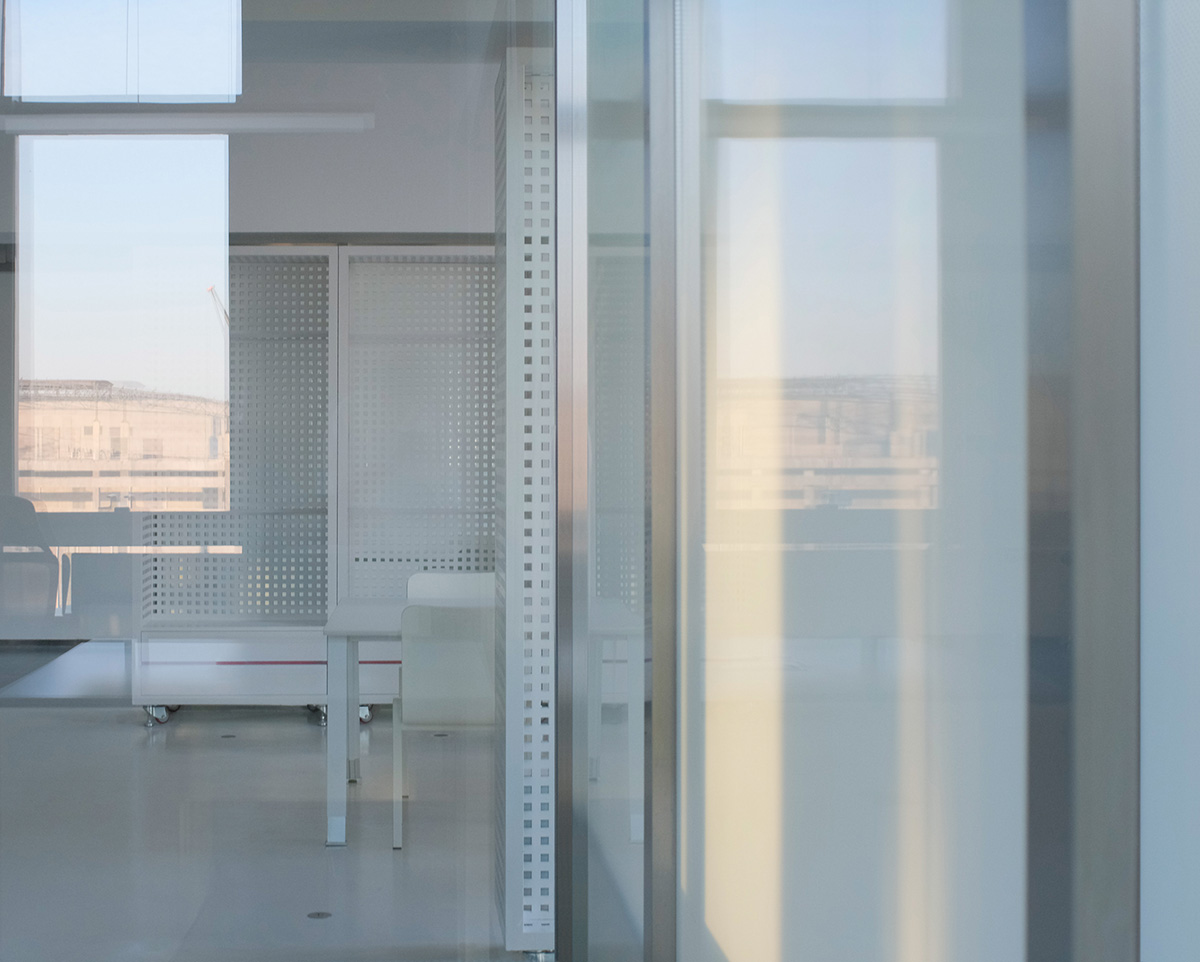

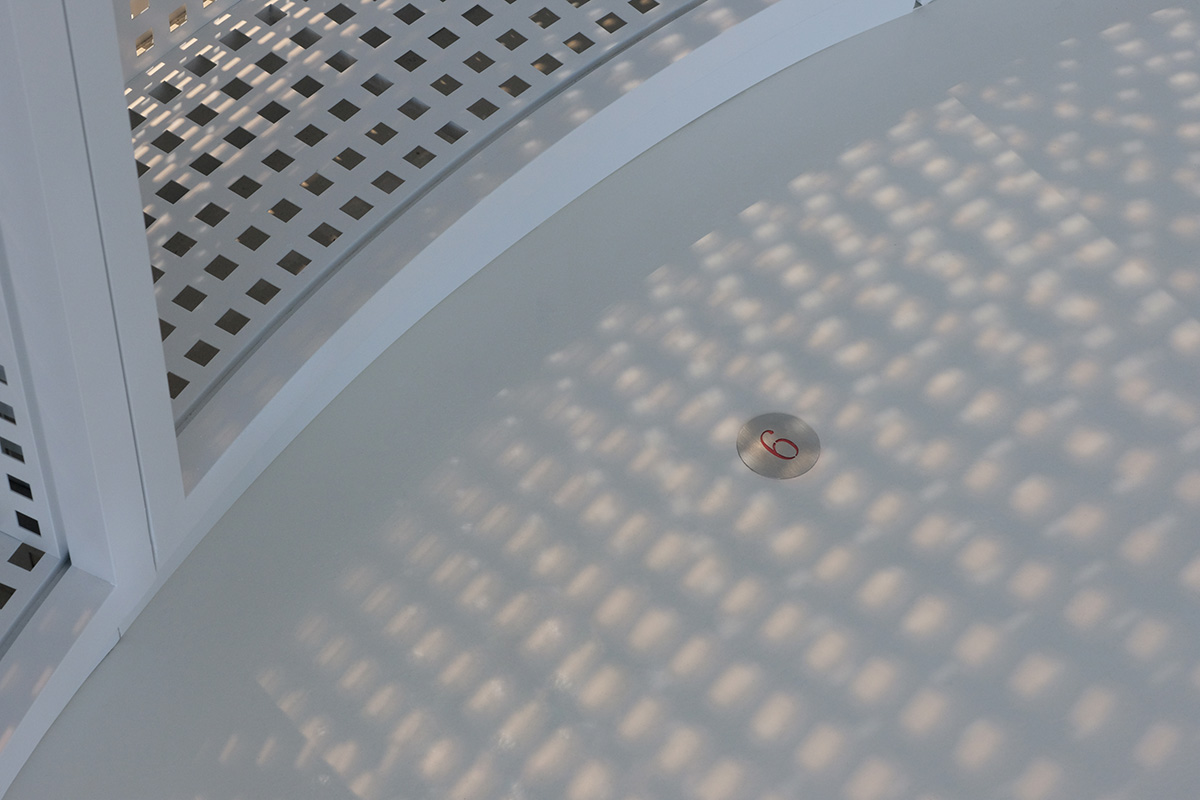

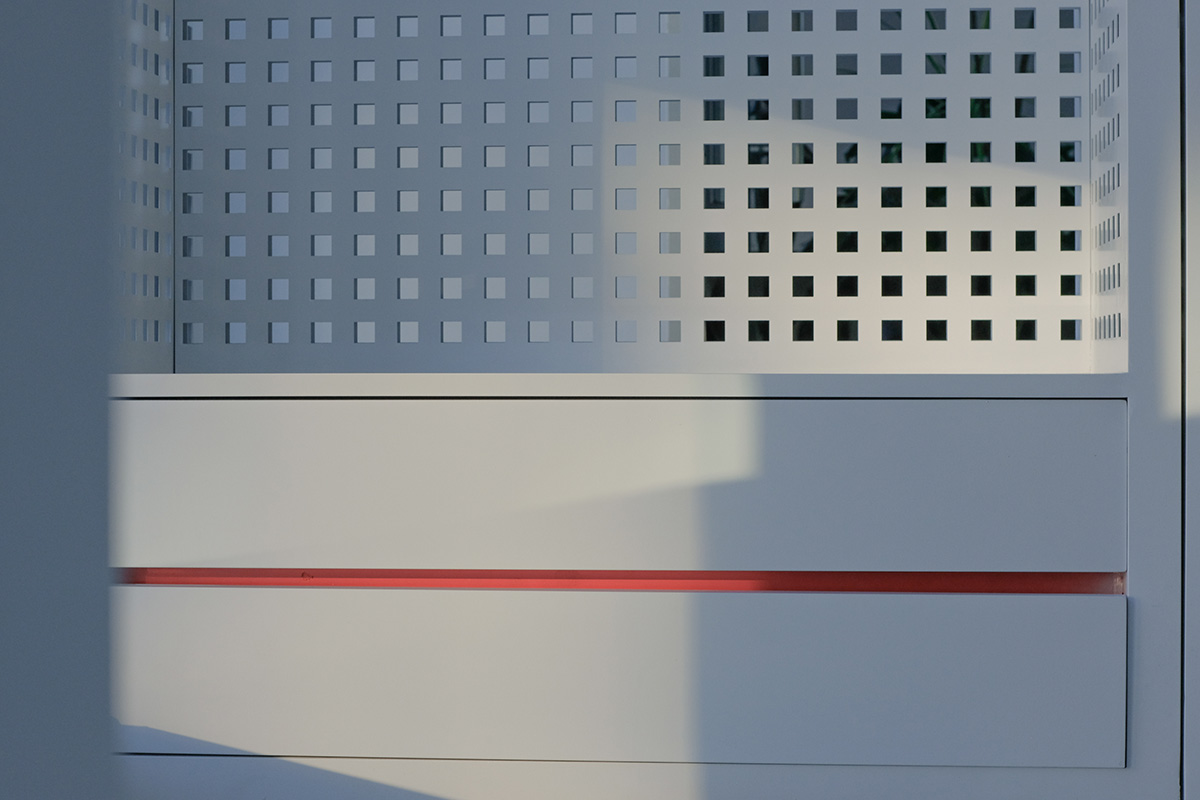

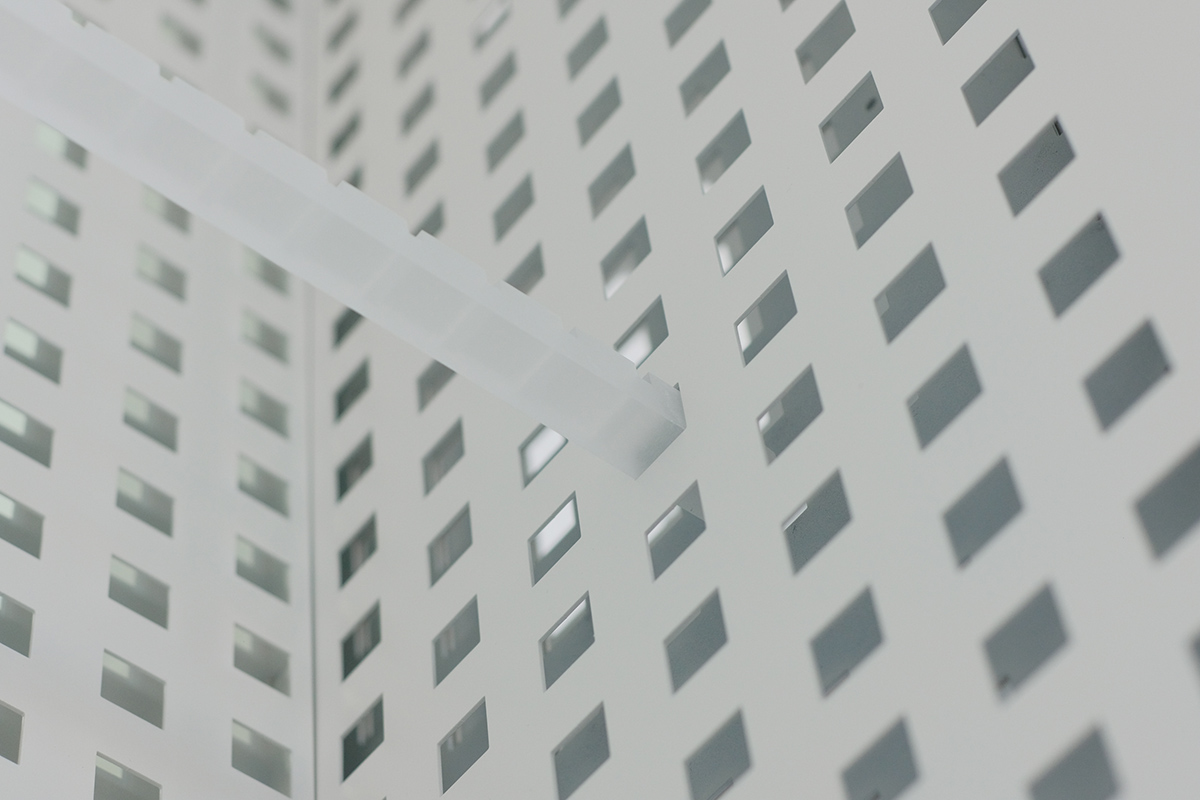

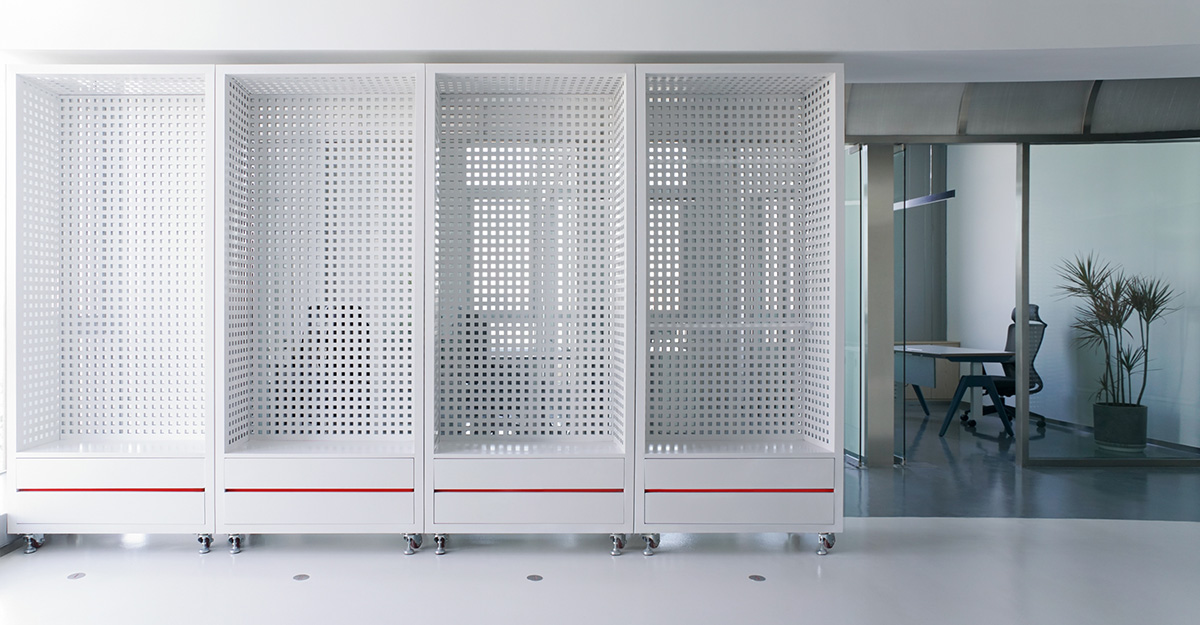

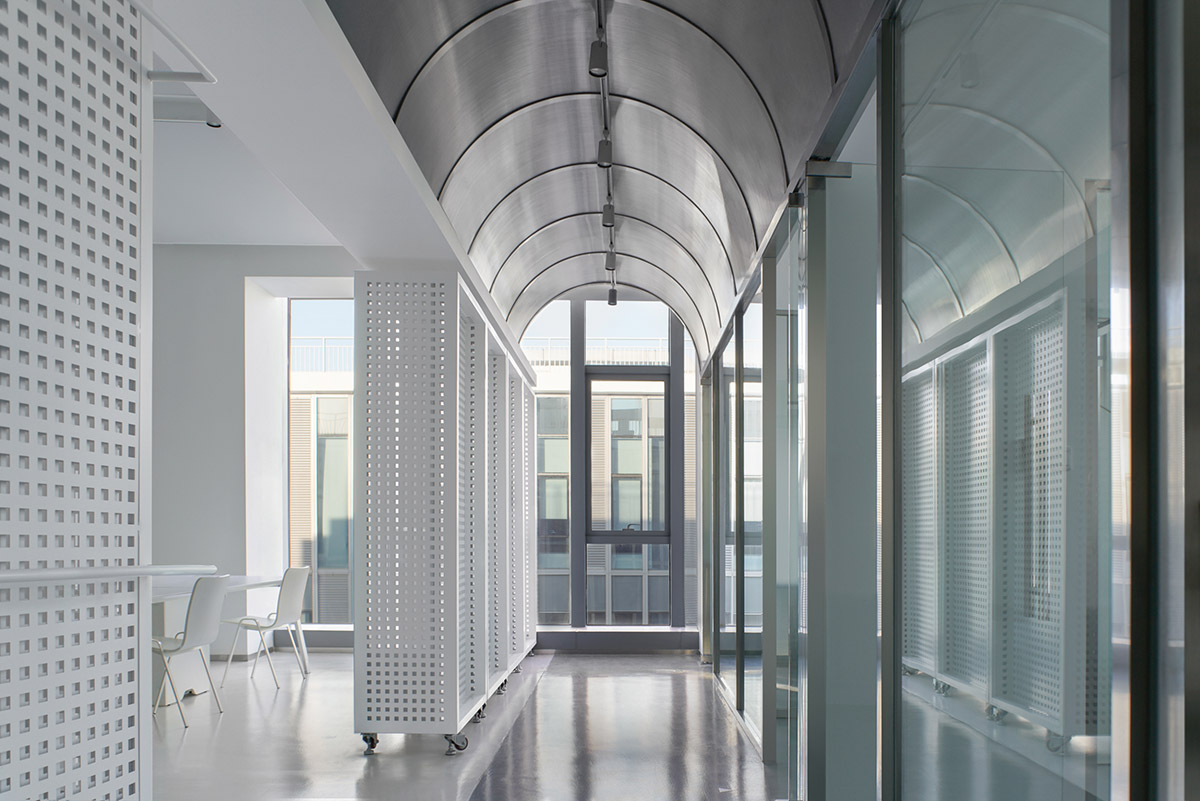

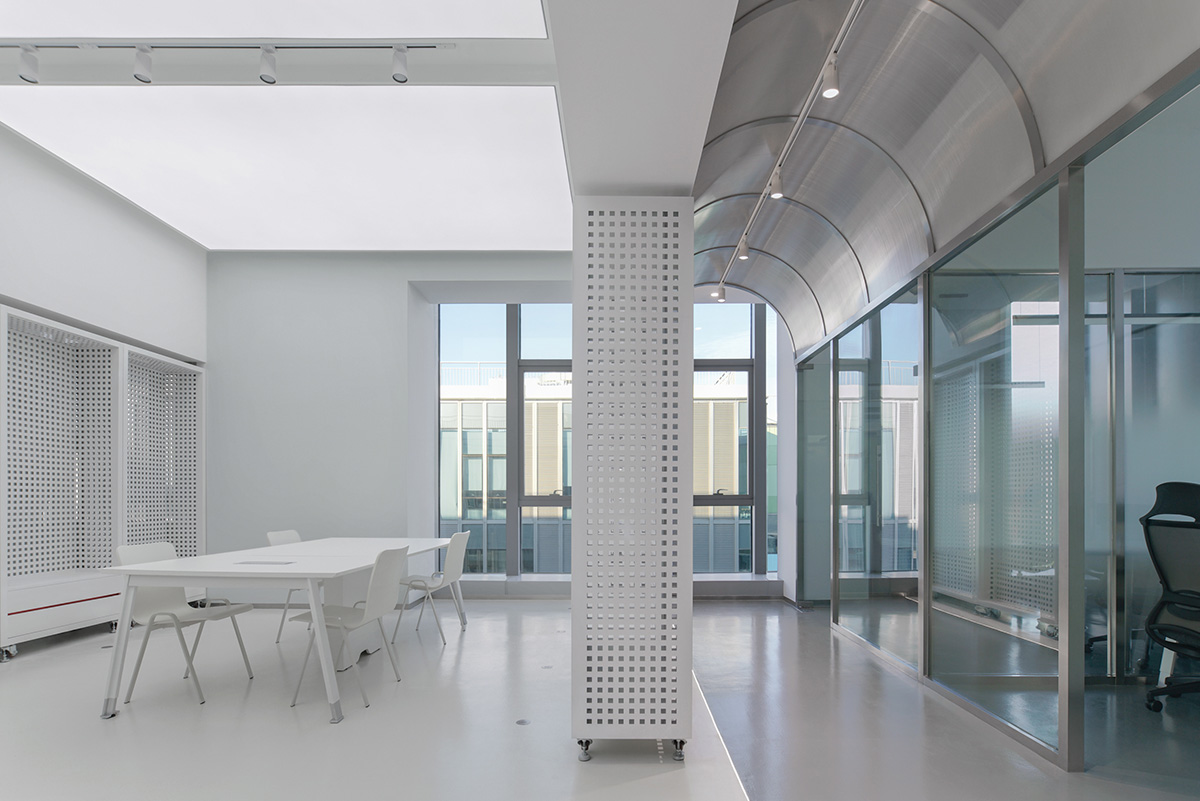

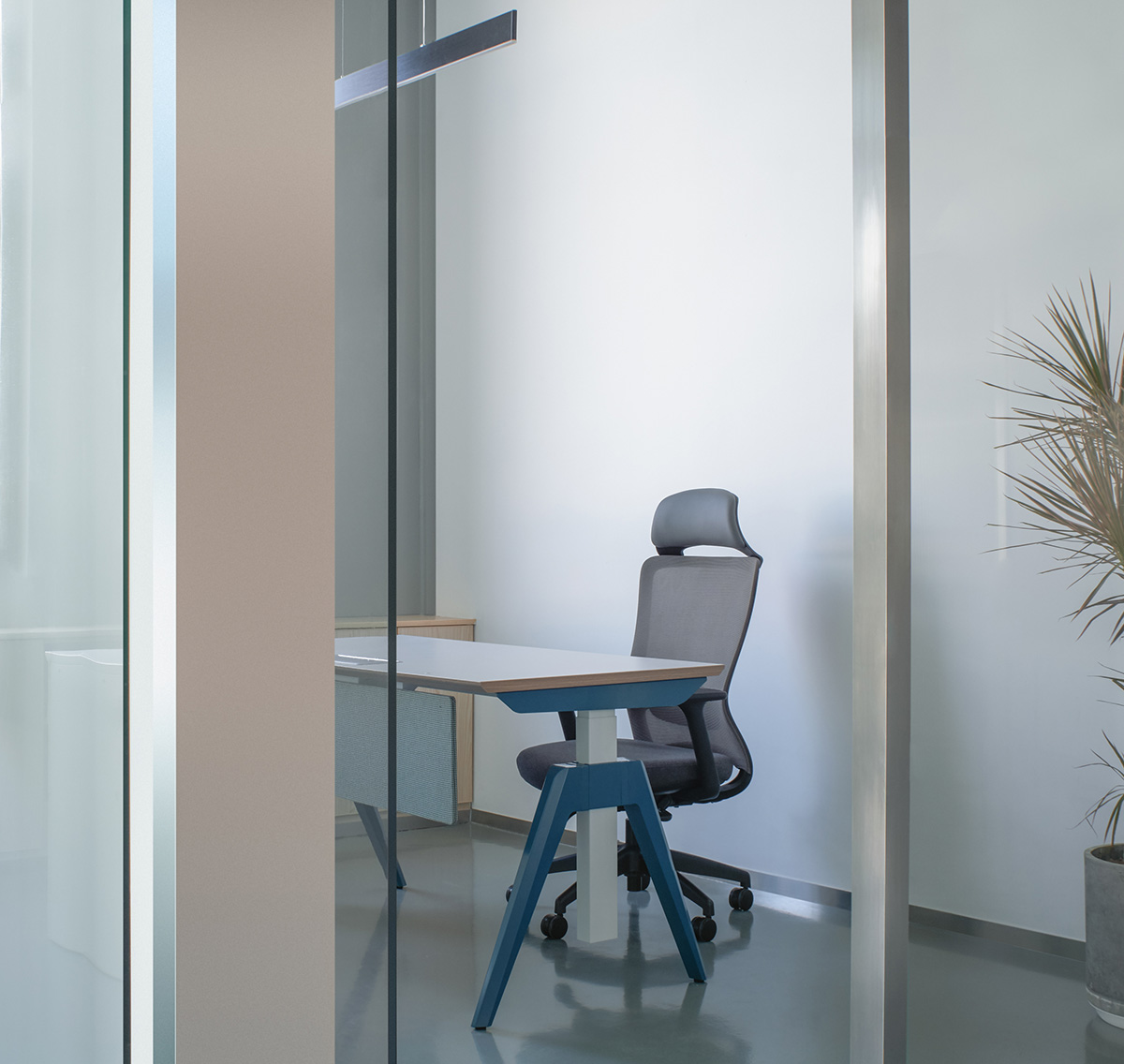

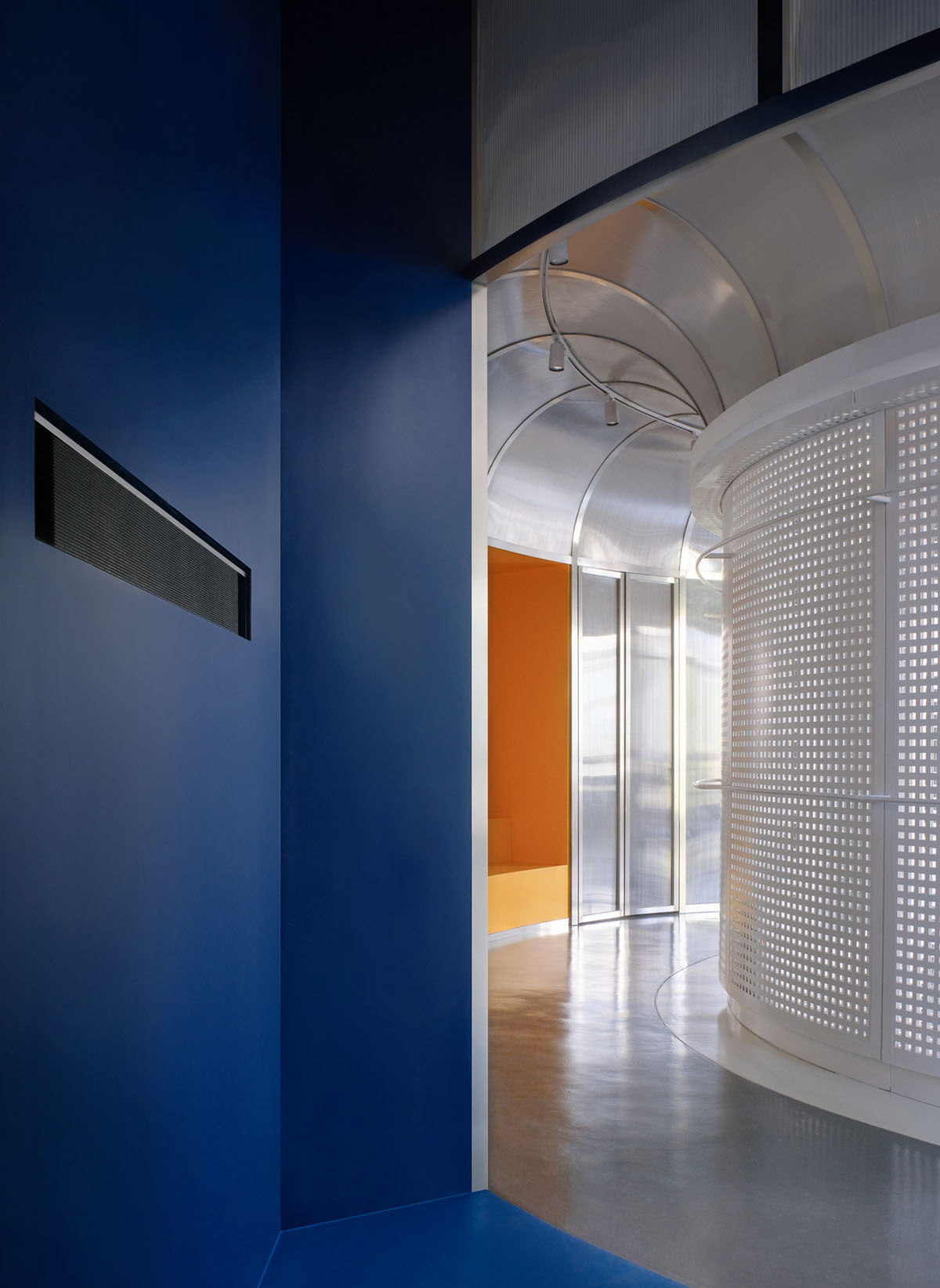

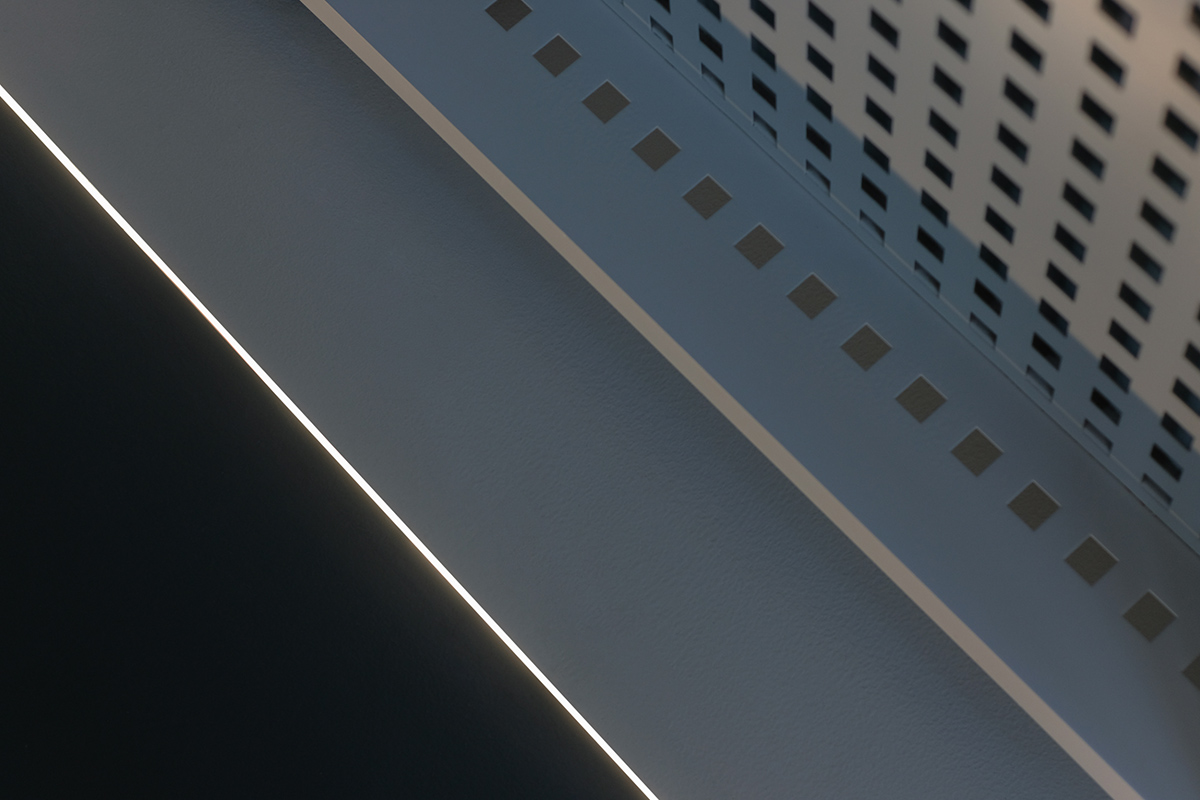

用U形展廳作為連接,西麵的采光麵為辦公空間,東麵的實牆區為會議室和茶水區.為了讓南麵和西麵的幕牆采光可以進入到內部空間。辦公室空間為漸變膜玻璃隔斷,U形展區使用弧形陽光板和線性燈強調環形展區,展區的移動櫃體采用了穿孔處理,滿足光影視線和展示可調節的亞克力支撐管。

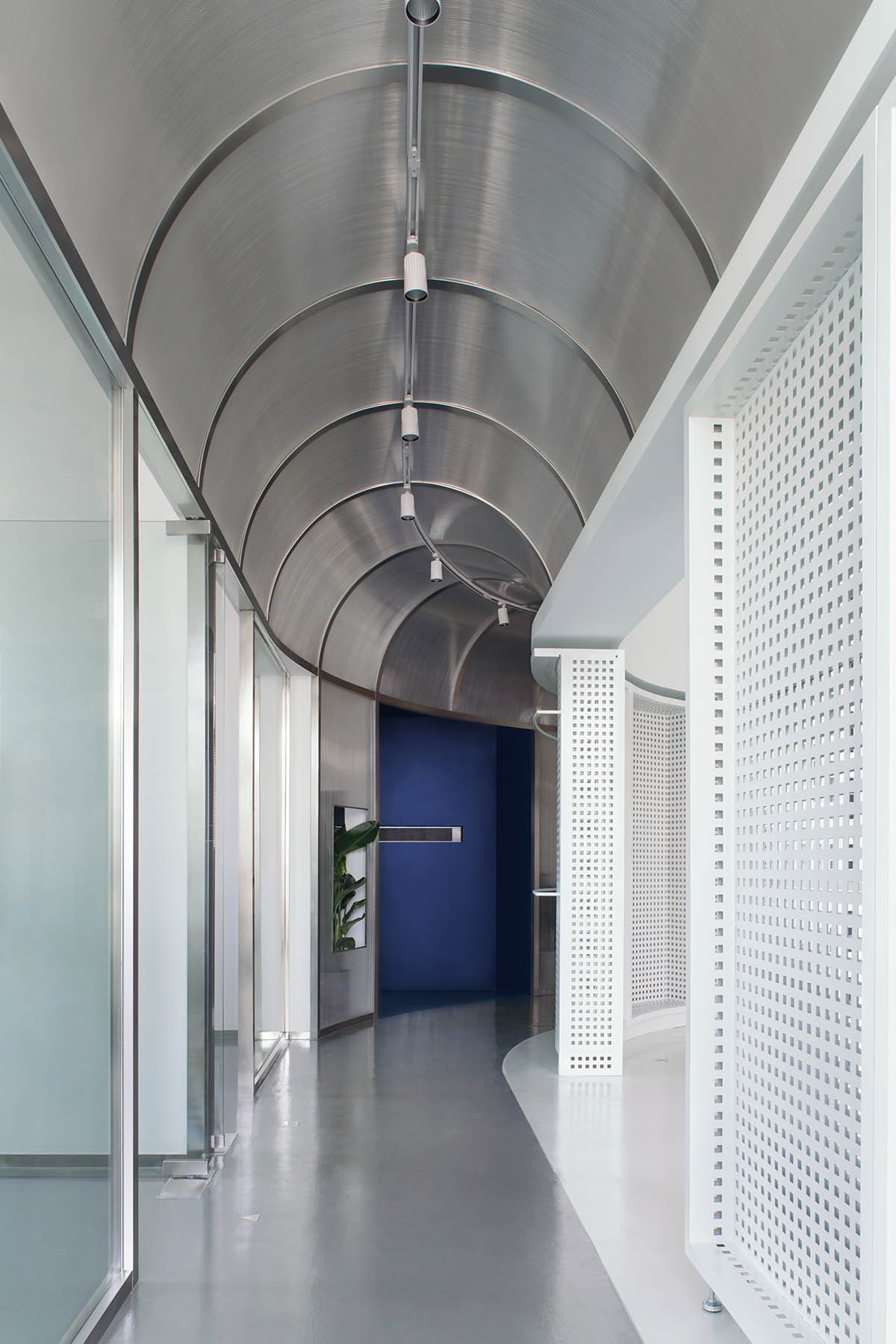

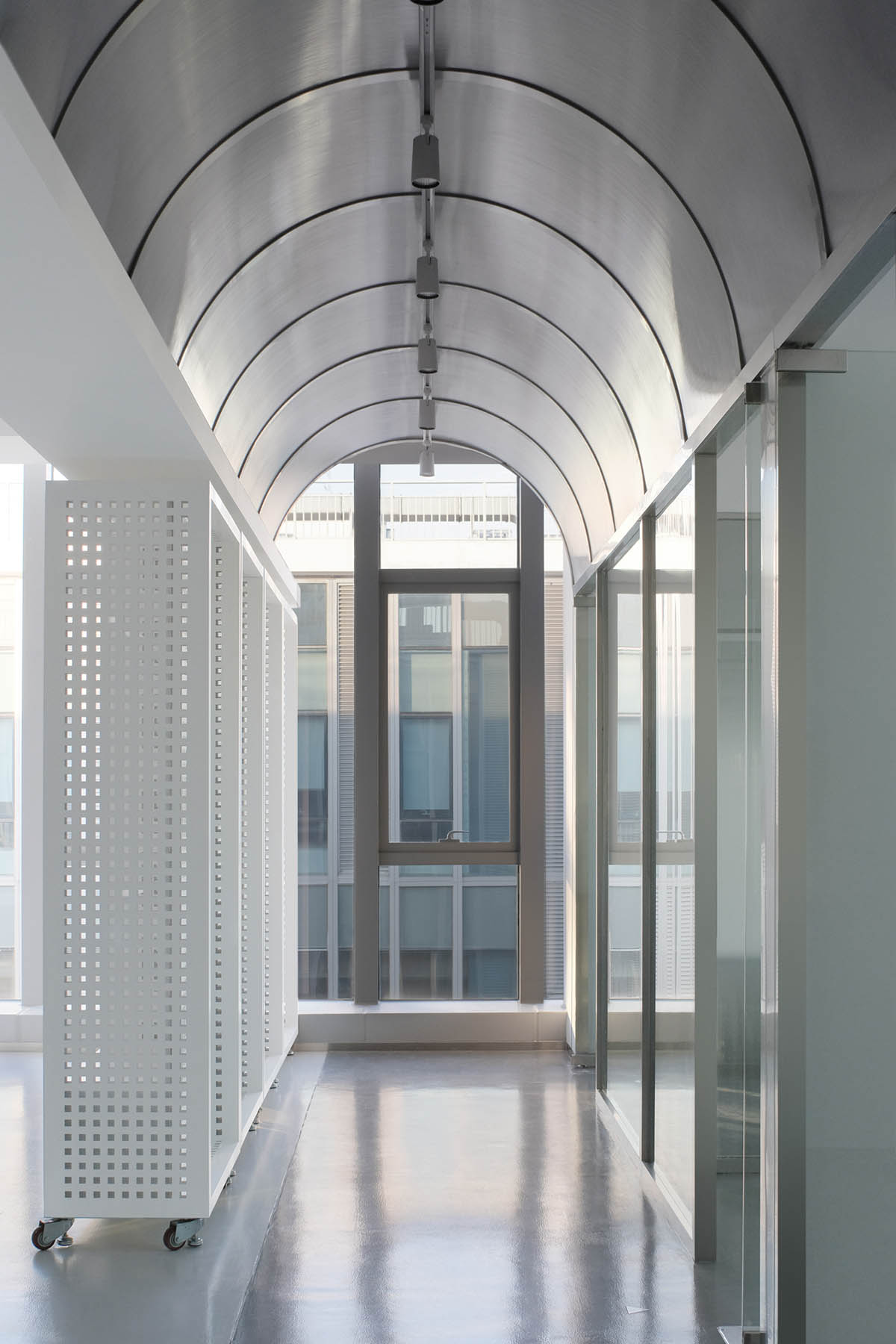

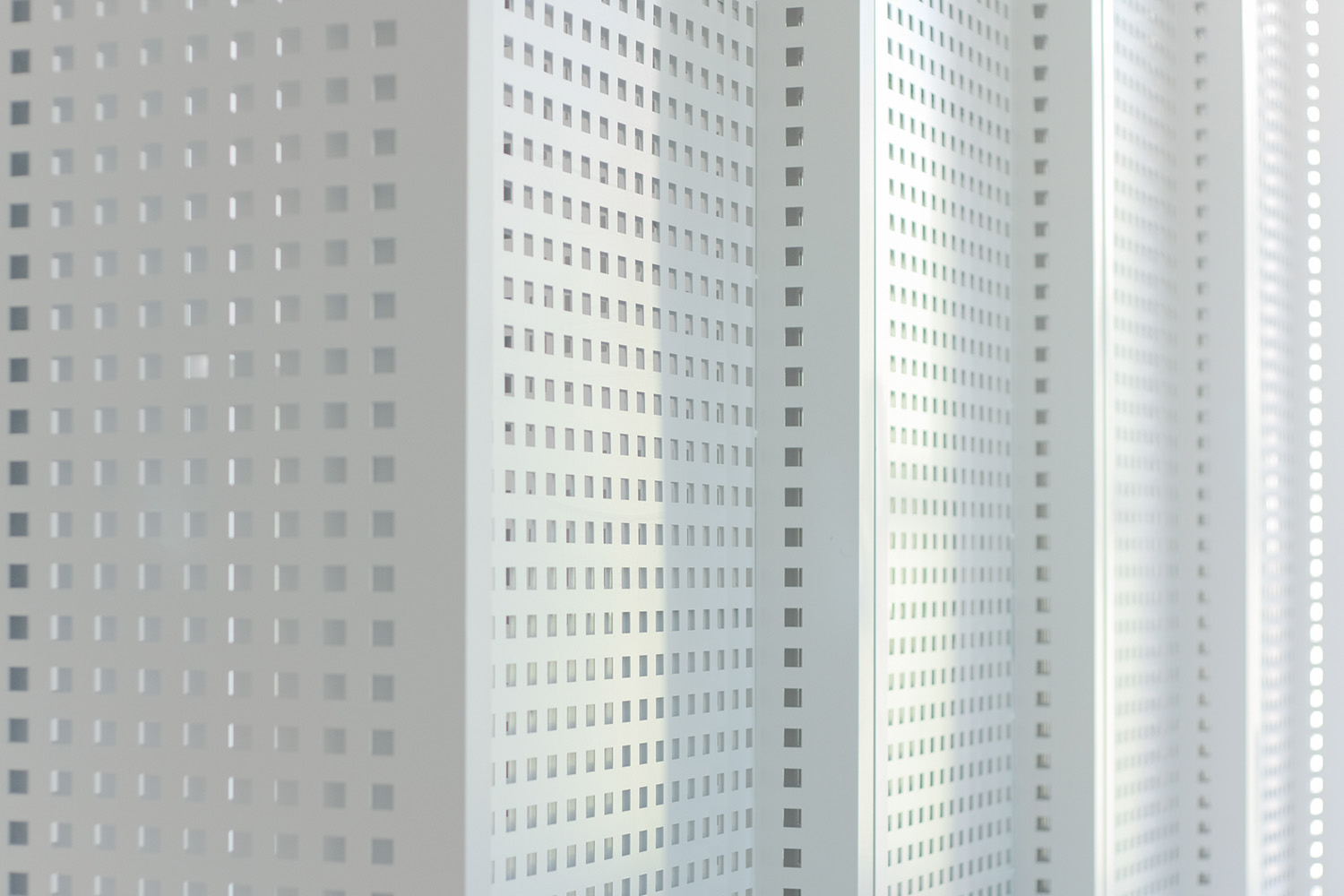

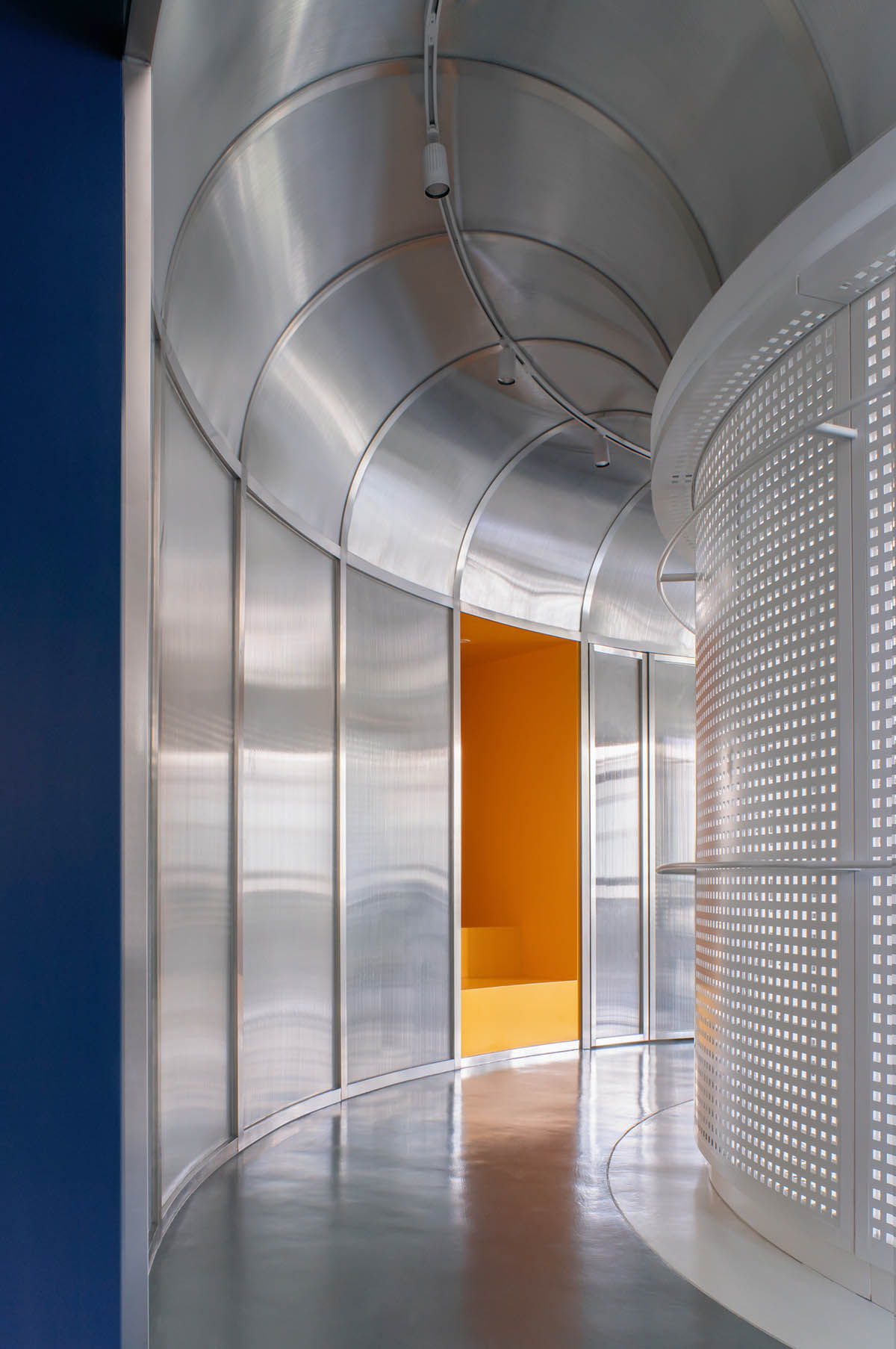

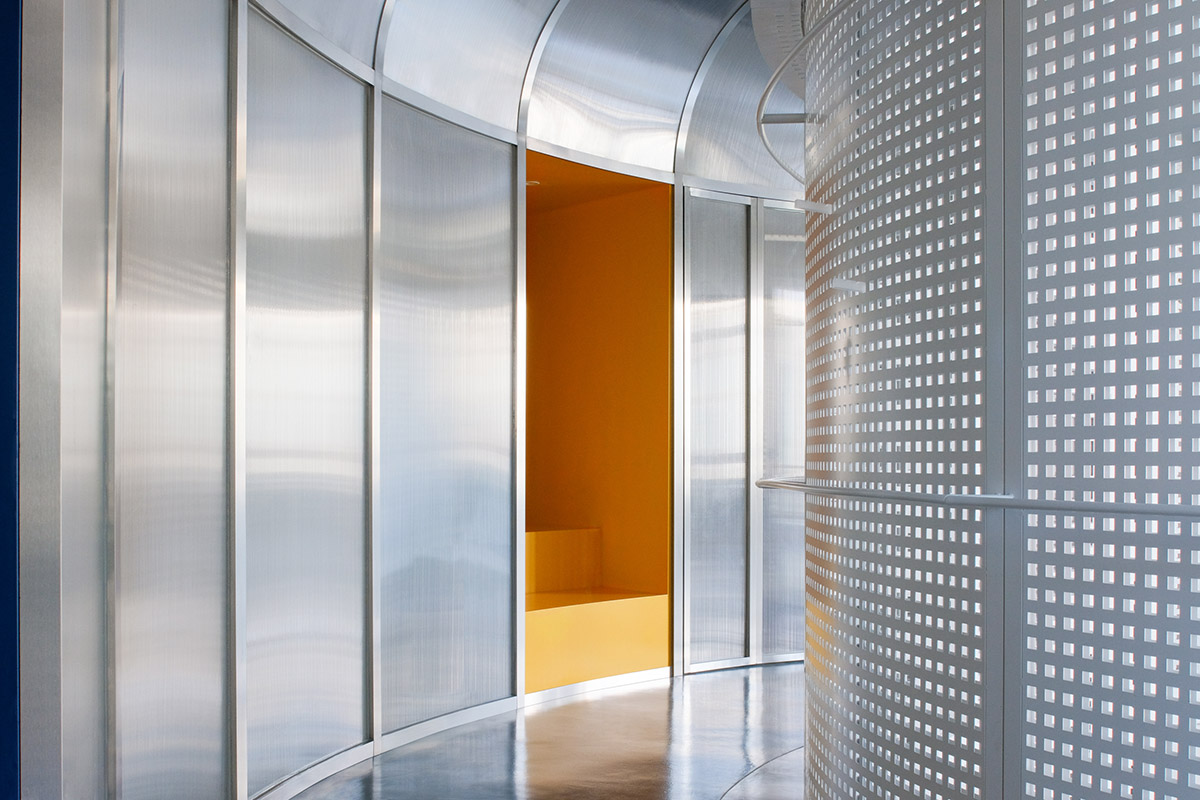

The U-shaped exhibition hall is used as the connection. The lighting surface on the west is the office space, and the solid wall area on the east serves as the meeting room and pantry. In order to allow the lighting of the curtain walls on the south and west to enter the interior space, the office space is partitioned by gradual film glass. The U-shaped exhibition area are covered with curved sunlight panels and linear lights are installed to emphasize the circular exhibition area. The mobile cabinets in the exhibition area are perforated to meet the needs of light, film, and carry adjustable acrylic support tubes.

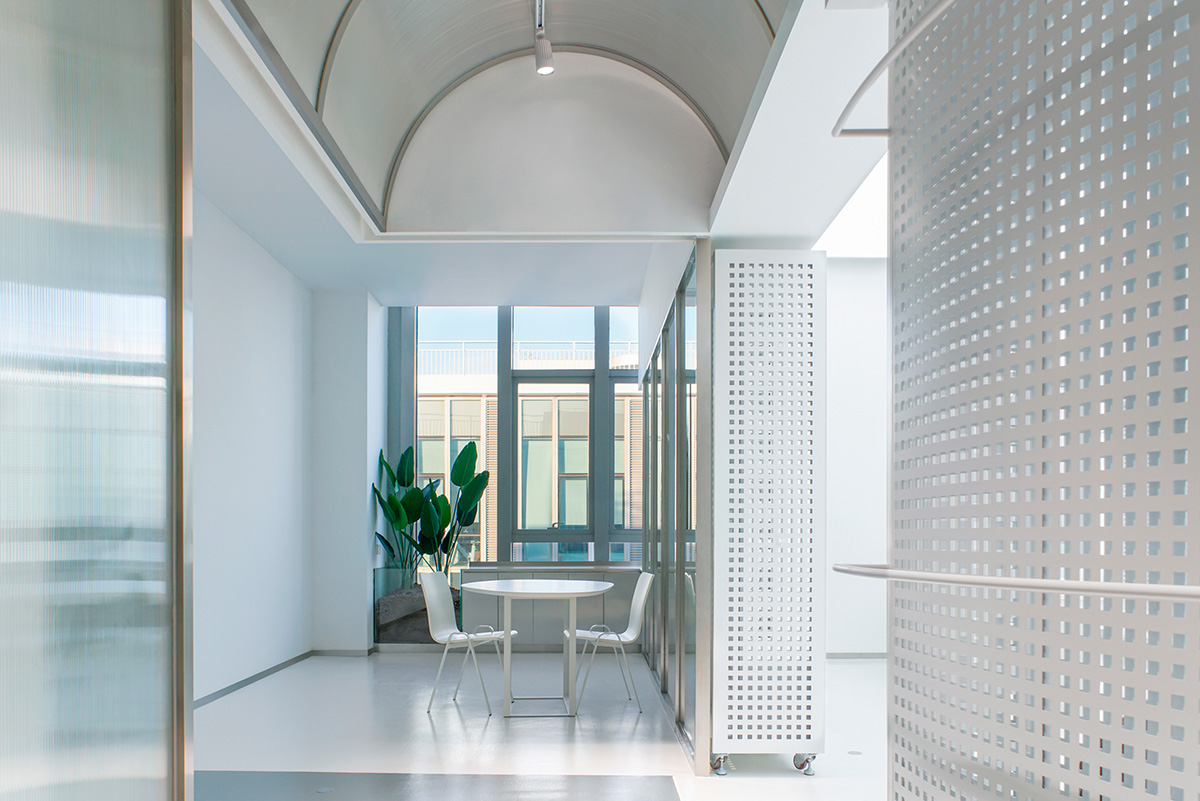

U形交叉的灰空間,我們植入了一個休息區,其它的區域作為景觀種子區域。流動的空間裏,穿插的縫隙中。蘊含T台/展廳/辦公 工作/觀展/行走 景觀/光影/移動 。空間本身成為一個行為藝術的載體,在複合的功能中探尋自由的空間意識,是這一次空間我們研究討論的主題。
萬物有序/而形態萬千

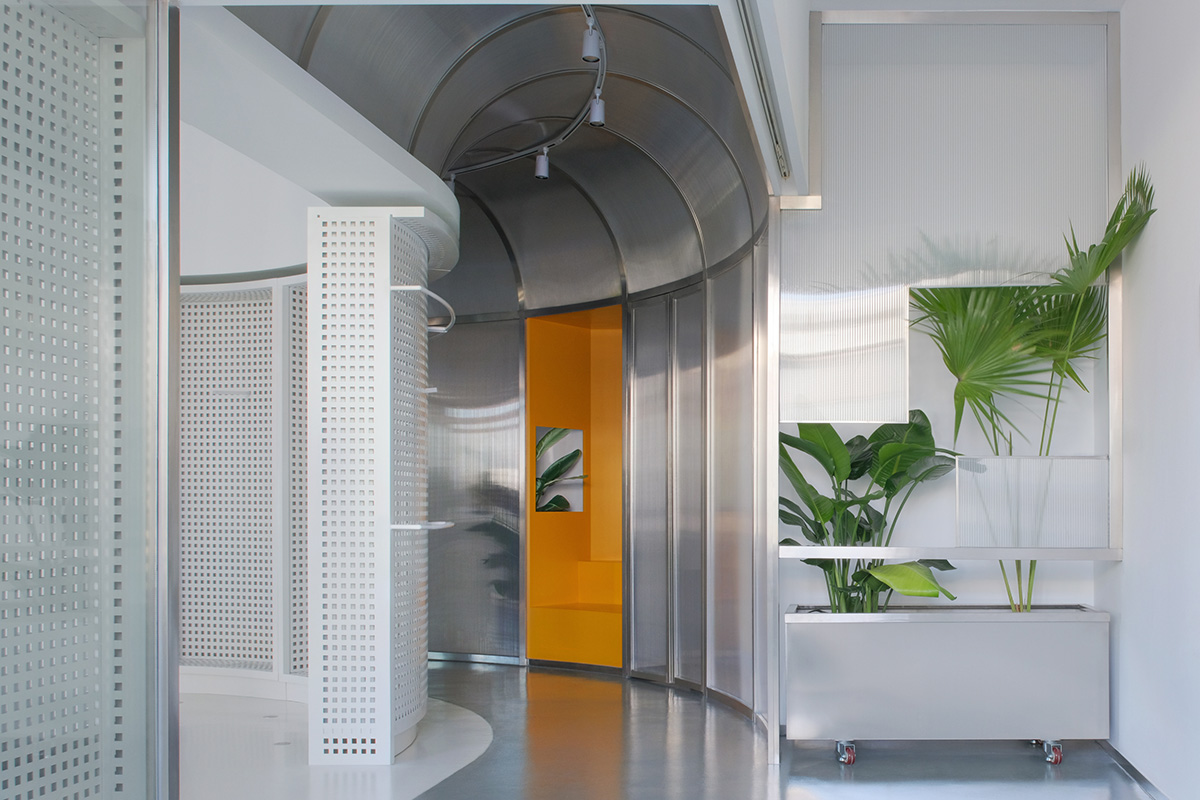

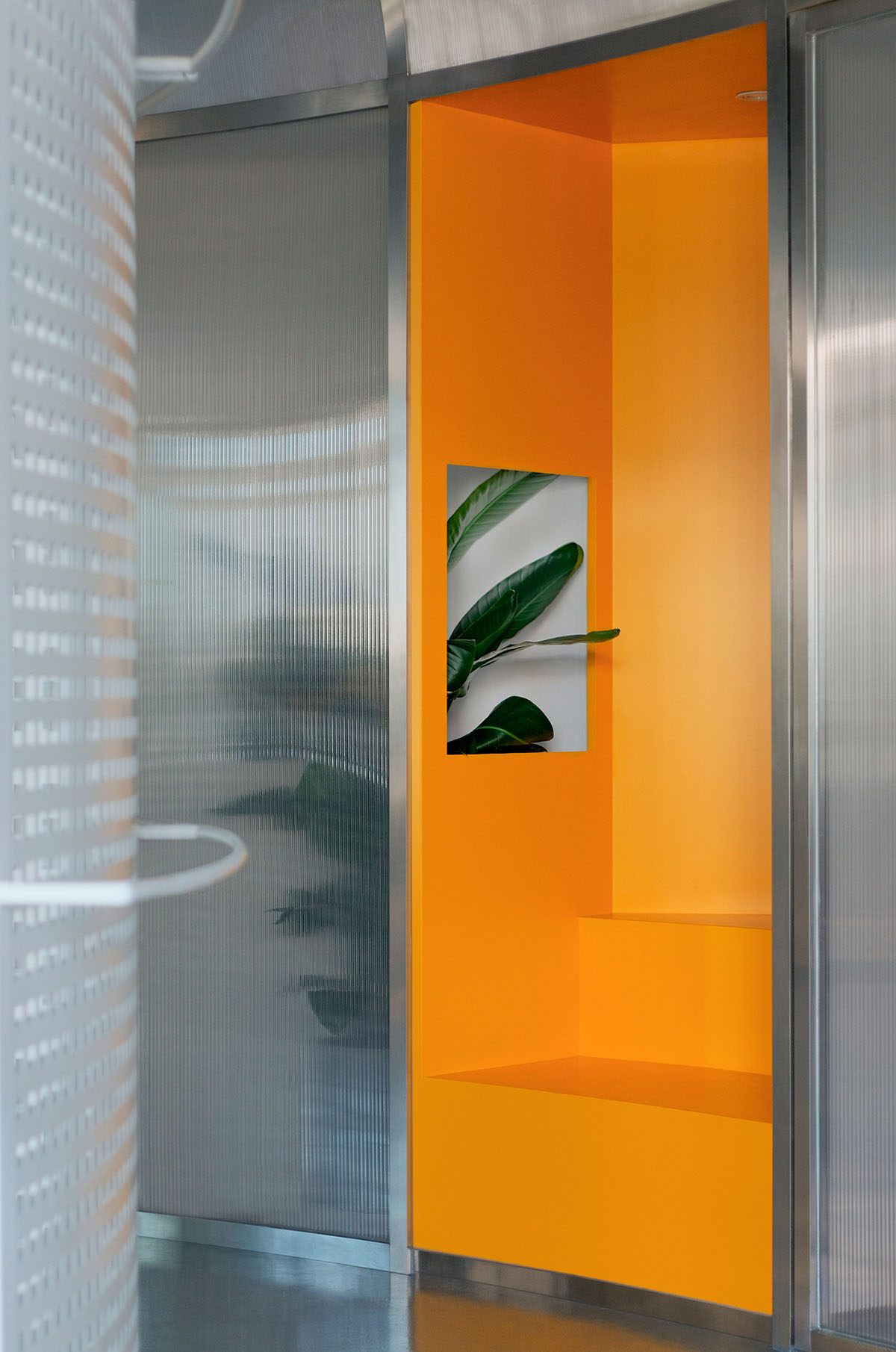

In the U-shaped gray space, an area is reserved for resting, and the other areas are used for landscape. In the flowing space and in the interspersed gap contains the mixed function of T stage/exhibition hall/office, work/exhibition/walking, landscape/light and shadow/mobility. Space itself has become a carrier of performance art. The exploration of free space consciousness in compound functions is the subject of our research and discussion on space this time.

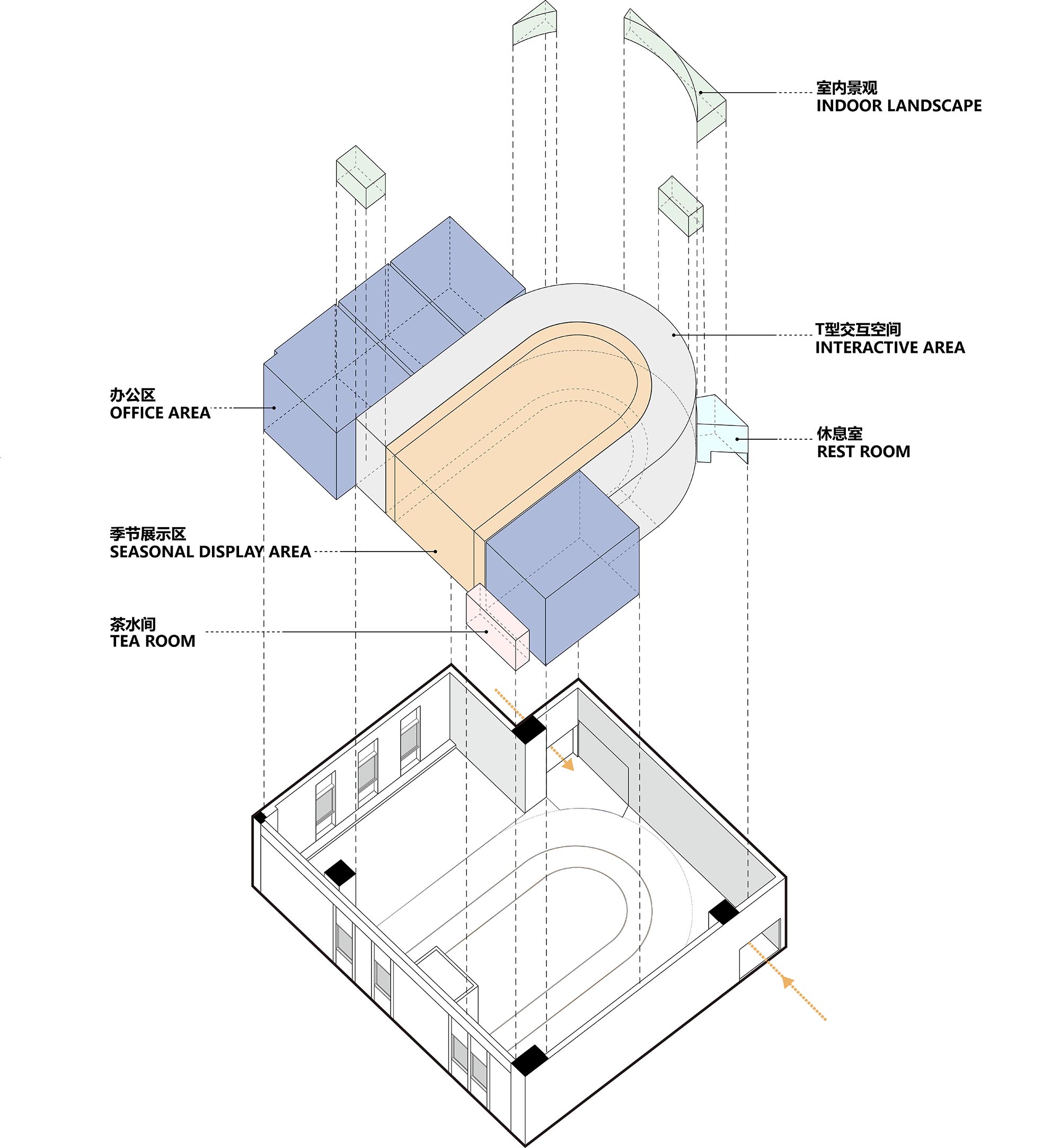

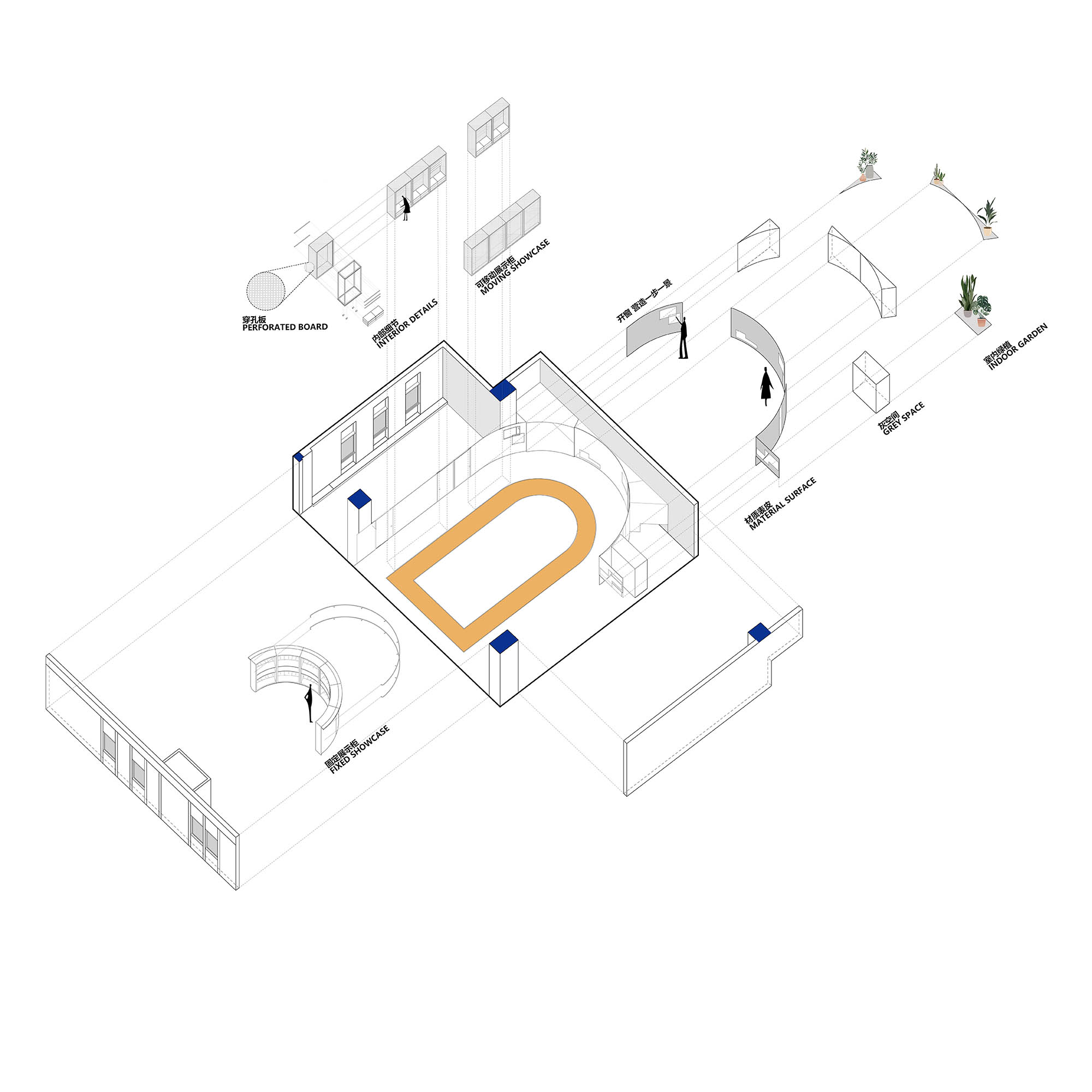

∇ 爆炸分析圖
∇ 平麵圖
項目信息
項目地址:上海市,七寶萬科
室內麵積:130㎡
項目類型:配飾辦公展廳空間
設計內容:室內設計、展櫃設計、燈光設計、軟裝設計
設計時間:2019.08—2019.10
施工時間:2019.12—2020.06
建築與室內設計團隊:序態設計研究室
設計團隊:楊添堡,王鵬一,孫誌偉,羅荊倩,王悅榕
軟裝設計:沈昕
材料:自流平,PC板,穿孔鋁板,漸變貼膜
攝影師: 雲眠工作室YUUUUNSTUDIO
聯係方式:info@xutaidesign.com
Location: QibaoVanke , Shanghai
Indoor area: 130m2
Project Type: accessory exhibition hall & office
Design content: interior design, cabinet, lighting, decoration
Design time: 2019.08 – 2019.10
Construction time: 2019.12 – 2020.06
Architectural and Interior Design Team: XuTai Design and Research Studio
Design team: Yang Tianbao, Wang Pengyi, Sun Zhiwei, Luo Jingqian, Wang Yuerong
Decoration designer: Shen Xin
Material: self-leveling floor, PC sheet, perforated plate, gradient film
Photographer: YUUUUNSTUDIO
